Fieldbus Indicator (SDO and PDO) CA340
SKU: CA340
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

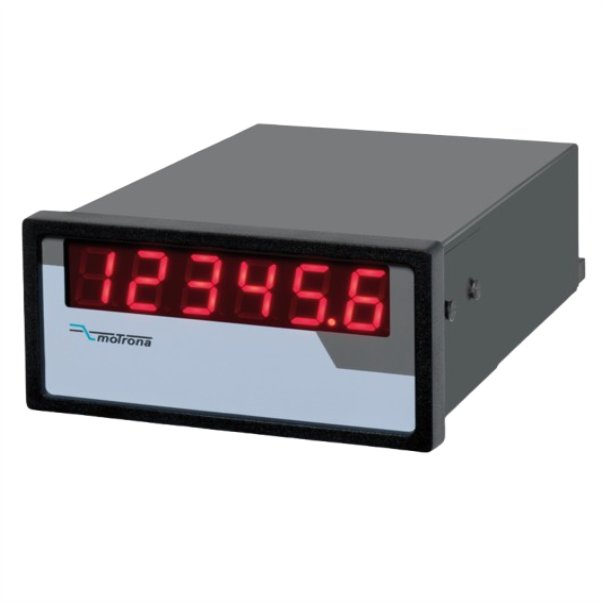

In plants connected by a CAN-Bus, the straightforward and reasonably priced display device CA340 is used to show individual parameters or process data (e.g. display and specification of speed values).
All process values up to six digits that are available on the CAN-Bus can be displayed on this "on-site" digital display.
Both PDO and SDO objects can be used with the integrator.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power supply 10 ... 30 VDC.
Compact norm panel housing.
6 digits LED display with 15 mm height.
Display range -199999 ... 999999.
DIL-switch for setup of the transmission parameters.
Dimension H x B x T = 96 x 48 x 140 mm (3.78 x 1.89 x 5.12 ").
