14W Grey ribbon Cable (per 100cm)
SKU: CAB-0002-I01
Sold by Select Automation
Final price R 0.94
R 0.82 excl. VAT
Availability: In Stock (24 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

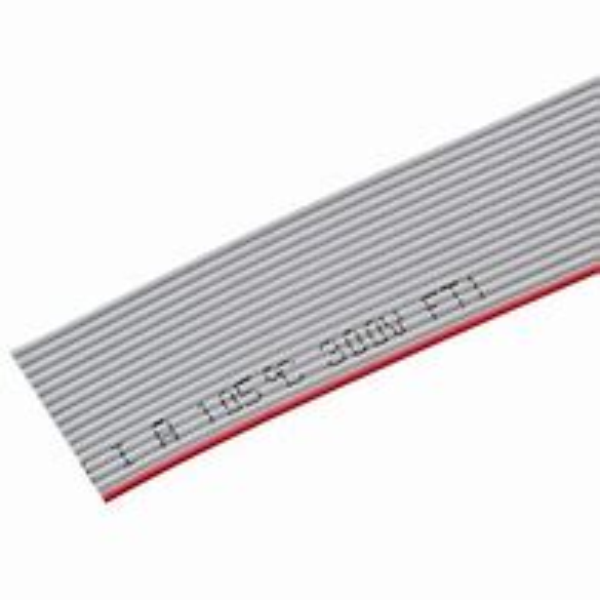

The 14W Grey Ribbon Cable is a flat multi-conductor cable with 14 parallel wires.
It's intended for internal wiring, signal transmission, and IDC connection assemblies in electrical equipment and control systems.
The cable contains 28 AWG tinned copper conductors spaced at a 1.27 mm pitch, making it compatible with conventional 2.54 mm headers and connections.
The grey PVC jacket is flexible and durable, and a coloured edge stripe helps identify pin 1 for proper orientation.
This connection is perfect for compact, orderly wiring in embedded systems, prototyping environments, and industrial electronics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of Conductors: 14 wires (14-way).
Wire Gauge: 28 AWG.
Conductor Strand: 7 strands of 36 AWG tinned copper.
Pitch (Spacing): 1.27 mm (0.050").
Ribbon Width: 19.81 mm (0.780").
Ribbon Thickness: 2.54 mm (0.100").
Jacket Material: Polyvinyl Chloride (PVC).
Jacket Colour: Grey.
Voltage Rating: 300 V.
Operating Temperature: −20°C to +80°C.
Insulation Resistance: ≥ 10 GΩ.
UL Style: UL2912.
