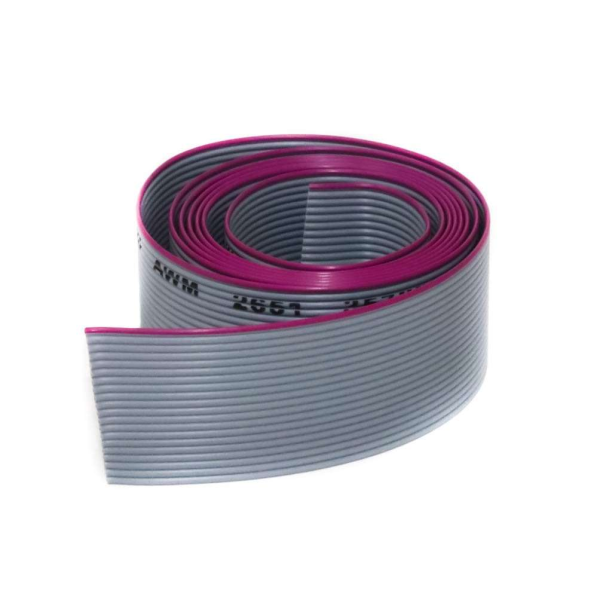

20W Grey Ribbon Cable (100 CM)
SKU: CAB-0004-I01
Sold by Select Automation
Final price R 1.41
R 1.23 excl. VAT
Availability: In Stock (29 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The 20W Grey Ribbon Cable is a flat, flexible cable with 20 parallel conductors offered by the meter.
It is intended for signal transmission, internal wiring, and IDC connection assemblies in electronic systems.
The cable has 28 AWG stranded copper wires spaced at a 1.27 mm pitch, making it suitable for conventional 2.54 mm connections.
Its grey PVC insulation is both durable and flexible, and a coloured edge stripe (usually red) helps identify pin 1 for appropriate orientation.
This cable is useful for organizing wiring in embedded systems, control panels, and prototyping environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Number of Conductors: 20 wires (20-way).
Wire Gauge: 28 AWG.
Conductor Type: Stranded tinned copper.
Pitch (Spacing): 1.27 mm.
Insulation Material: Polyvinyl chloride (PVC).
Cable Colour: Grey (may be with or without red tracer).
Voltage Rating: 300 V.
Temperature Range: −20°C to +85°C.
Length: Sold per 100 cm.
Applications: IDC connector assemblies, signal routing, internal wiring.
