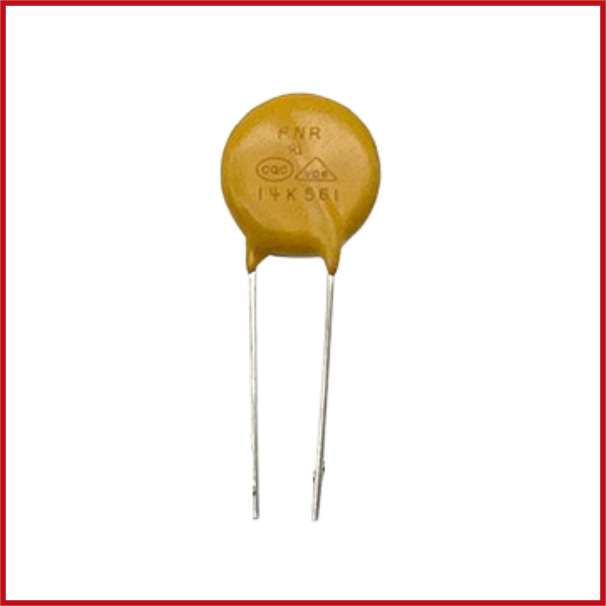

FNR-14K561 14mm Metal Oxide Varistor (MOV), 350VAC / 455VDC, Through-Hole
SKU: CAP-0199-A13
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The FNR-14K561 is a 14 mm Metal Oxide Varistor (MOV) that protects electronic equipment from voltage surges and transient overvoltage events.
With a maximum continuous operating voltage of 350 VAC / 455 VDC and a nominal varistor voltage of 560 V, it swiftly clamps high-energy voltage spikes, protecting delicate electronic components and extending equipment life.
It is suited for power supply, industrial controls, household appliances, and surge protection circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Metal Oxide Varistor (MOV).
Part Number: FNR-14K561.
Series: FNR K Series.
Disc Diameter: 14 mm.
Mounting Type: Through Hole.
Varistor Voltage: 560 V (±10%).
Varistor Voltage Range: 504 – 616 V.
Maximum Continuous AC Voltage: 350 VAC.
Maximum Continuous DC Voltage: 455 VDC.
Clamping Voltage: 925 V.
Peak Surge Current: Up to 4.5 kA (8/20 µs).
Energy Rating: 104 J.
Capacitance: 345 pF @ 1 kHz.
Lead Spacing: 7.5 mm.
Operating Temperature: -40°C to +85°C.
RoHS Compliant: Yes.
