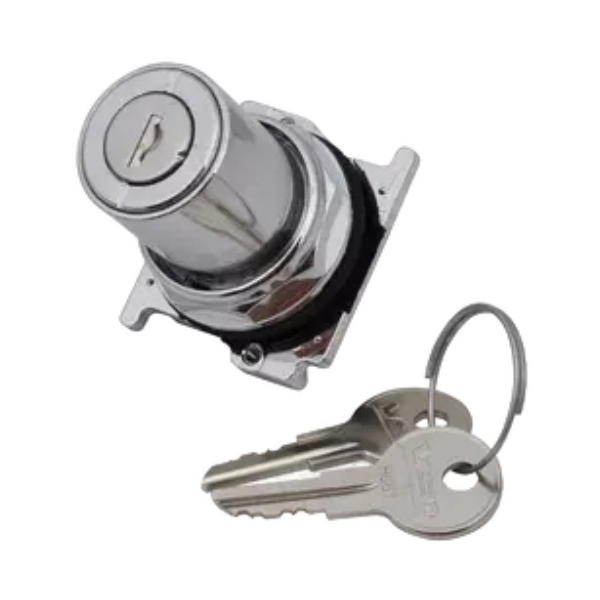

Eaton Heavy Duty Oiltight Selector Switch (Key Slot)
SKU: CBI-0008-H08
Price on request
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Eaton Heavy-Duty Oiltight Selector Switch (Key Slot) is part of Eaton’s 10250T series, designed for rugged industrial environments where durability and reliability are critical. This key-operated selector switch offers secure control access, making it ideal for machinery lockout, mode selection, and restricted operations. Built to withstand harsh conditions, it features watertight and oiltight sealing and complies with multiple NEMA ratings for enclosure compatibility.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: Eaton 10250T
Actuator Type: Key-operated (Key Slot)
Number of Positions: 2-position
Throw Type: 60°
Cam Code: Cam 1
Key Removal Position: Right only (or Left only depending on model variant)
Mounting Size: 30.5 mm
Illumination: Non-illuminated
Enclosure Ratings: NEMA 3, 3R, 4, 4X, 12, 13
Ingress Protection: IP65
Mounting Style: Panel mount (vertical or horizontal)
Contact Blocks: Configurable with up to 12 circuits (6 per side)
Material: Metal bezel with oiltight gasket
Operating Temperature: –25°C to +70°C
Weight: ~0.35 lb
