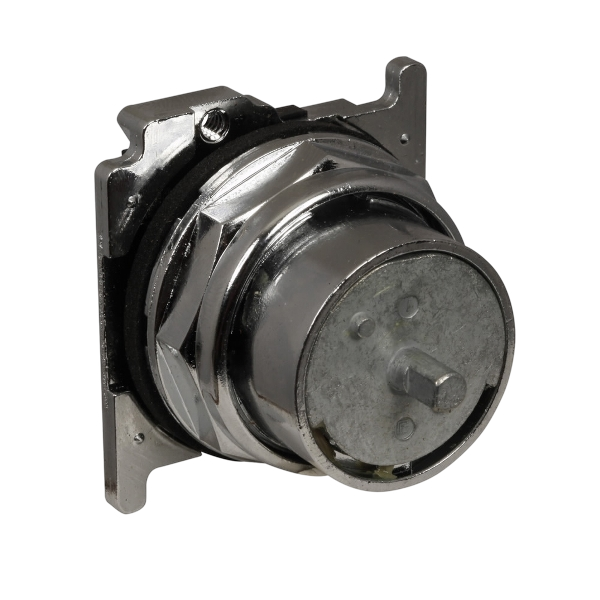

Eaton Heavy Duty Oiltight Selector Switch (10250T4023)
SKU: CBI-0009-H08
Price on request
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Eaton 10250T4023 Heavy-Duty Oiltight Selector Switch is a robust, non-illuminated operator designed for industrial control panels requiring secure and reliable manual input. With a 3-position maintained contact mode and a 60° throw, it’s ideal for mode selection, machine control, or lockout functions. The die-cast zinc housing and polished chrome bezel ensure durability in harsh environments, while its oiltight and watertight sealing meets stringent NEMA and IP standards.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: 10250T
Type: Selector Switch Operator
Actuator Style: Knob/Lever
Positions: 3-position (Left–Center–Right)
Throw Angle: 60°
Cam Code: Cam 3
Contact Mode: Maintained
Illumination: Non-illuminated
Mounting Size: 30.5 mm
Mounting Style: Surface mount
Bezel Material: Die-cast zinc, polished chrome
Enclosure Ratings: NEMA 3, 3R, 4, 4X, 12, 13
Ingress Protection: IP65
Voltage Rating: Up to 600 VAC
