External Baying Kit, CCE, 57x57x20mm, Zinc Plated, Mild Steel
SKU: CCE06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

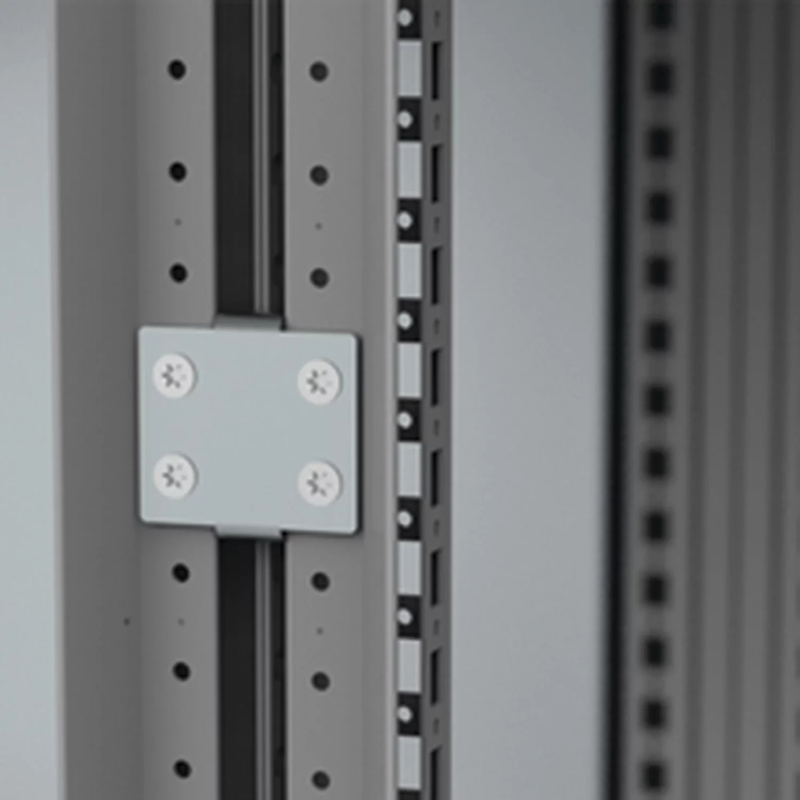

The purpose of the nVent Hoffman External Baying Kit, CCE06, is to make enclosure baying safe, effective, and space-efficient without requiring inside space.
Mild steel construction and a zinc-plated finish provide these brackets longevity and corrosion resistance.
Combinable floor-standing enclosures can be bade side to side with this kit, guaranteeing structural integrity and correct alignment.
This baying kit offers a direct earthing connection between the enclosure frames, making it perfect for applications where internal space preservation is essential.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: CCE06.
Material: Mild Steel.
Finish: Zinc Plated.
Colour: Unpainted.
Dimensions:
Height: 57 mm (2.24 in).
Width: 57 mm (2.24 in).
Depth: 20 mm (0.79 in).
Thickness: 3 mm.
Suitable For Use With: IEC Enclosure.
Package Quantity: 6 brackets with mounting accessories.
Assembly: Tool-free assembly with snap-lines for side-to-side baying of combinable floor-standing enclosures.
Comments: The rear panel and door should be removed before mounting; not to be used in combination with small partial doors.
