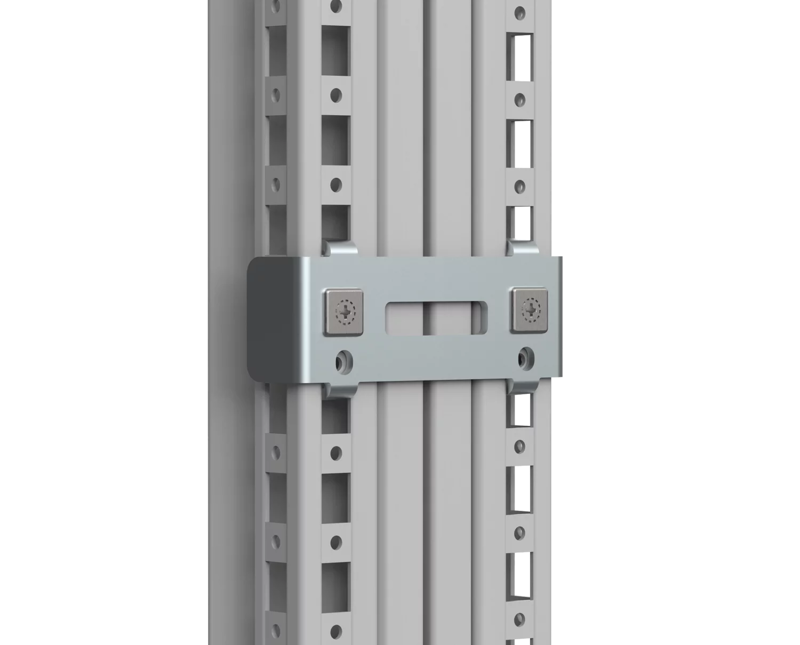

Internal Baying Brackets, CCI, 46x101x22mm, Zinc Plated, Mild Steel
SKU: CCI06
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Without the need for tools, the Vent Hoffman Internal Baying Brackets, CCI06, are made to make enclosure baying quick and secure.
Mild steel construction and a zinc-plated finish provide these brackets longevity and corrosion resistance.
The brackets are made to ensure that the enclosure assembly is rigidly reinforced and that the enclosures are spaced correctly.
Combinable floor-standing enclosures can be bade side to side thanks to their interior mounting on the profiles.
These brackets don't need removing the door or rear panel during installation, making them perfect for applications where tool-free assembly is desired.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: CCI06.
Material: Mild Steel.
Finish: Zinc Plated.
Colour: Unpainted.
Dimensions:
Height: 46 mm (1.8 in).
Width: 101 mm (3.98 in).
Depth: 22 mm (0.87 in).
Thickness: 11 gauge.
Suitable For Use With: IEC Enclosure.
Package Quantity: 6 brackets with mounting accessories.
Assembly: Tool-free assembly with snap-lines for side-to-side baying of combinable floor-standing enclosures.
Comments: Not to be used in combination with a separation plate or mounting plate if mounted on the side of the enclosure; use external baying kit (CCE) in such cases.
