Internal Corner Baying Kit, CCM, 74x85x79mm, Zinc Plated, Mild Steel
SKU: CCM04
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

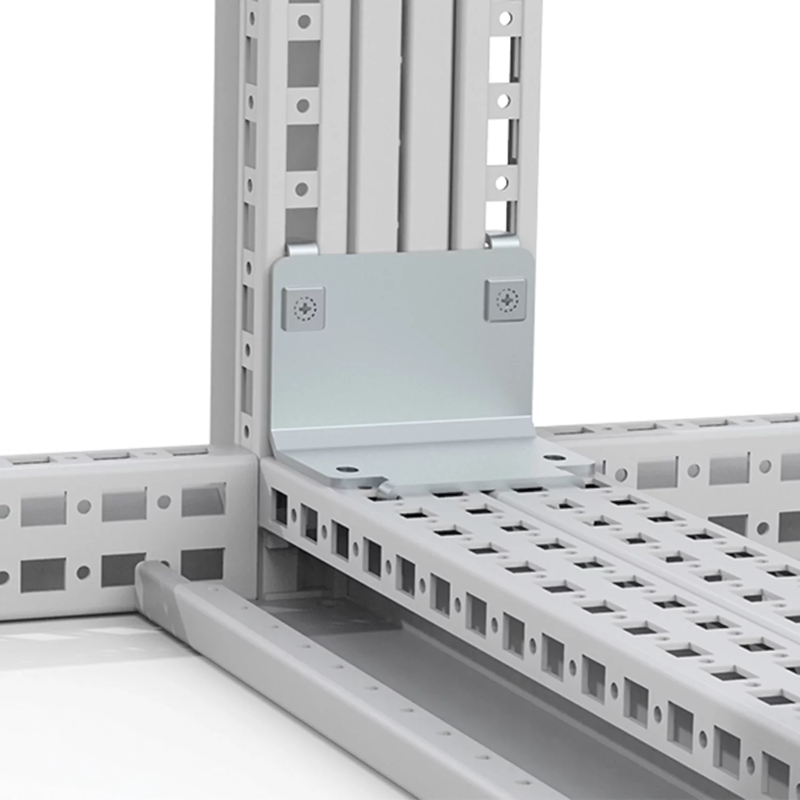

For electrical enclosures that need to be lifted and are fully equipped, the Vent Hoffman Internal Corner Baying Kit, CCM04, is made to offer additional support and safe baying.
Because 3 mm mild steel has been zinc-plated, these brackets are long-lasting and corrosion-resistant.
Combinable floor-standing enclosures may be bade side to side with this kit, which also saves a ton of installation time because the door and back panel don't need to be removed.
For applications where durable and dependable baying is crucial, this baying kit is perfect.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: CCM04.
Material: Mild Steel.
Finish: Zinc Plated.
Colour: Unpainted.
Dimensions:
Height: 74 mm (2.91 in).
Width: 85 mm (3.35 in).
Depth: 79 mm (3.11 in).
Thickness: 3 mm.
Suitable For Use With: IEC Enclosure.
Package Quantity: 4 brackets with mounting accessories.
Assembly: Tool-free assembly with snap-lines for side-to-side baying of combinable floor-standing enclosures.
Comments: Not to be used in combination with a mounting plate if mounted on the side of the enclosure, or in combination with the mounting plate filler (MPF) unless the mounting plates are brought 50 mm forward.
