MA220Z 20A 2P 6kA C-Curve MCB
SKU: CIB-0010-F07
Price on request
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

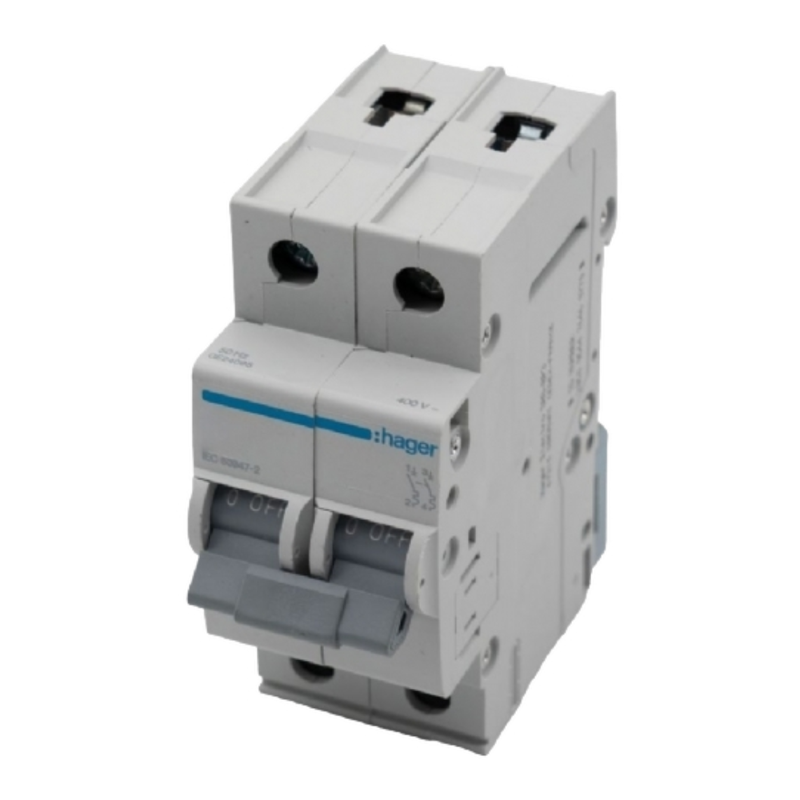

The Hager MA220Z is a 2‑pole miniature circuit breaker (MCB) rated at 20A, designed to provide thermal‑magnetic protection against overloads and short circuits. With a C‑curve tripping characteristic, it is suitable for circuits with moderate inrush currents, such as those powering motors, fluorescent lighting, or small industrial equipment. Its compact modular design makes it easy to integrate into residential, commercial, and light industrial distribution boards.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Miniature Circuit Breaker (MCB)
Poles: 2 (2P)
Rated Current (In): 20 A
Tripping Curve: C (for moderate inrush currents)
Rated Operational Voltage (Ue): 230/400 V AC
Rated Insulation Voltage (Ui): 500 V
Breaking Capacity (Icn): 6 kA (IEC 60898‑1)
Compliance: IEC 60898‑1
