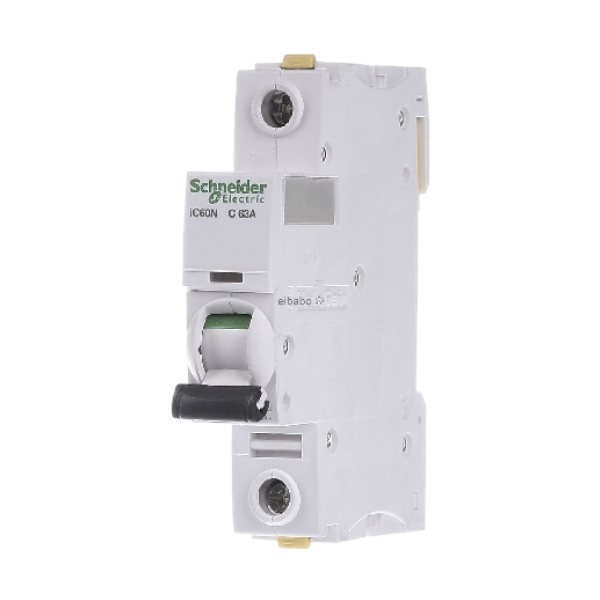

Schneider iC60A C63A 1-Pole
SKU: CIB-0014-F07
Sold by Select Automation
Final price R 173.17
R 150.58 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Schneider Electric Acti9 iC60A C63A 1-Pole Miniature Circuit Breaker is a high-performance protection device designed for industrial and commercial electrical distribution systems.
With a rated current of 63A and a C-curve tripping characteristic, it’s ideal for protecting circuits with moderate inrush currents, such as lighting and motor loads.
Its compact 30.5mm DIN-rail mountable design and thermal-magnetic trip unit make it a reliable choice for overload and short-circuit protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Series: Acti9 iC60A.
Poles: 1P (Single Pole).
Rated Current (In): 63A.
Tripping Curve: C (8× In magnetic trip threshold).
Trip Unit Type: Thermal-magnetic.
Rated Insulation Voltage (Ui): 500V AC.
Impulse Withstand Voltage (Uimp): 6kV.
Frequency: 50/60 Hz.
Mounting: DIN rail, 9mm pitch (2 modules wide).
Tightening Torque: 3.5 Nm.
Protection Rating: IP20 (when installed).
Ambient Operating Temperature: –35°C to +70°C.
