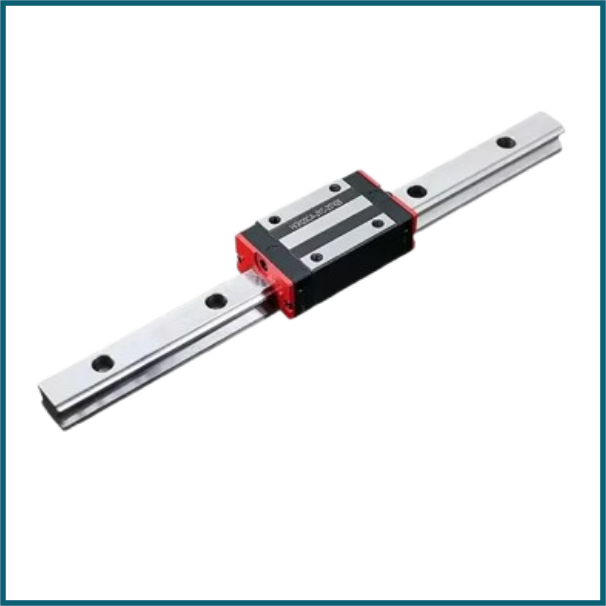

Linear Rail, HGR15 x 1000mm with HGH15CA Block
SKU: CNC-0004-P02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The DSG20H Aluminium Nut Housing Bracket Holder (Inner Hole 36mm) is a precision-machined mounting component for securing ball screw nuts in CNC machines, automation systems, and large 3D printers.
This product has a 36-mm inner bore and is compatible with ball screw nuts from the SFU2005/SFU2010 series (20-mm shaft diameter).
The high-strength aluminium alloy provides a lightweight and strong construction, with an anodized or machined finish for long-lasting durability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Rail Model: HGR15.
Rail Size: 15 mm width.
Rail Length: 1000 mm (1 m).
Block Model: HGH15CA (square type, high rigidity).
Material: Hardened steel rail, steel carriage with recirculating ball bearings.
Accuracy Grade: C class.
Load Capacity: Medium load, suitable for CNC and automation applications.
Mounting: Pre drilled holes along rail for easy installation.
