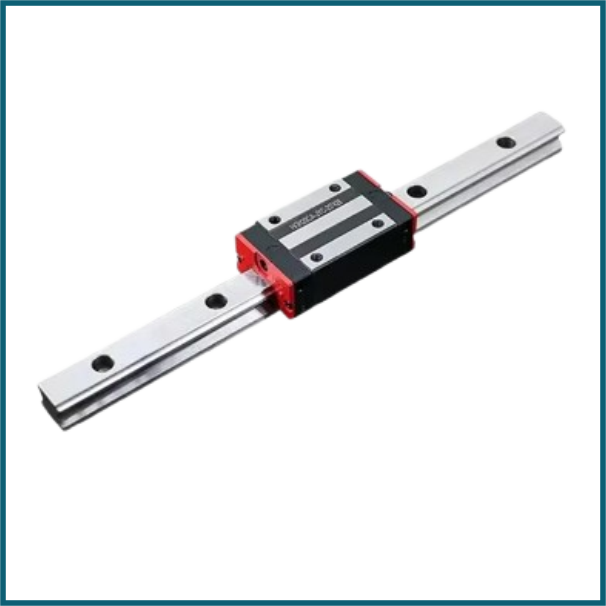

Linear Rail, HGR15 x 1500mm with HGH15CA Block
SKU: CNC-0005-P02
Sold by Select Automation
Final price R 1,782.02
R 1,549.58 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The HGR15 linear rail is a precision ground guide rail designed for linear motion systems in CNC machines, 3D printers, and automation equipment.
When used with the HGH15CA carriage block, it enables smooth, stiff, and accurate rail movement.
This 1500mm long variant is ideal for medium-to-large machines that require extended travel.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Rail Model: HGR15.
Rail Size: 15 mm width.
Rail Length: 1500 mm (1.5 m).
Block Model: HGH15CA (square type, high rigidity).
Material: Hardened steel rail, steel carriage with recirculating ball bearings.
Accuracy Grade: C class.
Load Capacity: Medium load, suitable for CNC and automation applications.
Mounting: Pre drilled holes along rail for easy installation.
