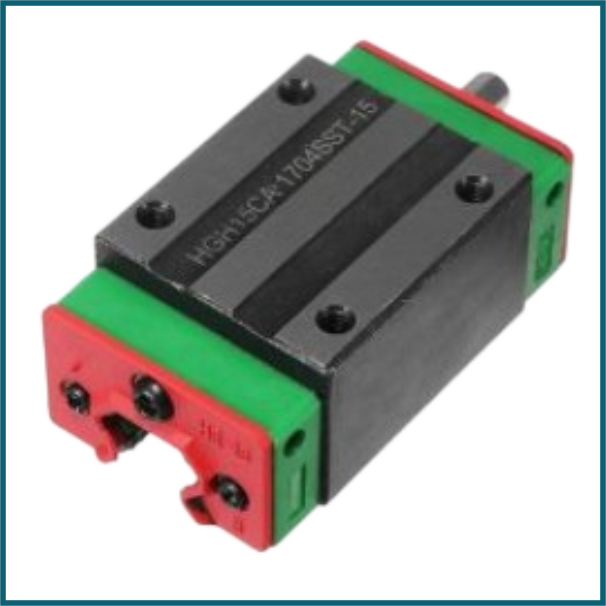

HGH15CA Block for Linear Rail, HGR15
SKU: CNC-0006-P02
Sold by Select Automation
Final price R 368.31
R 320.27 excl. VAT
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The "HGH15CA bearing block" is a part that slides along an "HGR15 linear rail."
The block contains ball bearings, allowing for smooth, precise movement along the rail.
It's commonly used in CNC machines, 3D printers, and other equipment where accurate linear motion is needed.
"HGH15CA" refers to the size and style of the block, while "HGR15" refers to the size (15mm wide) of the rail it fits onto.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Block type: HGH (Square-type, heavy load)
Model number: HGH15CA
Rail size: 15mm width (HGR15)
Load type: Heavy load
Accuracy class: Usually available in several grades (C, H, P, SP, UP) with varying precision levels
Block dimensions:
Length: ~83 mm
Width: ~47 mm
Height: ~30 mm
Mounting hole dimensions: 4 x M5 threads
Number of ball circuits: 4
Material: High-strength steel
Sealing: Dual rubber seals for dust protection
Operating temperature: Usually up to 80°C, depending on lubricant
Preload options: Zero to light, medium, or heavy, depending on the application requirements
