Ball Screw with nut SFU1204 400mm
SKU: CNC-0013-P02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

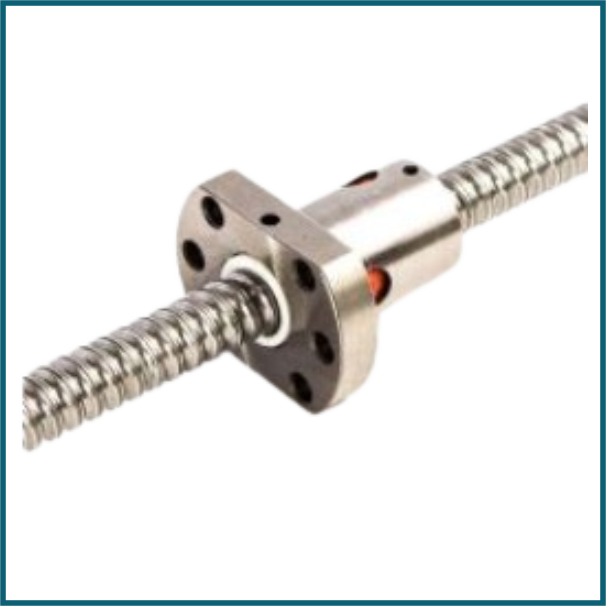

The SFU1204 ball screw assembly is a precise linear motion component for CNC machines, 3D printers, and automation systems.
The screw has a 400-mm threaded shaft and a flanged ball nut for smooth movement with low friction.
The designation "SFU1204" means:
S: Standard ball screw.
F = Flanged ball nut.
U: Rolled ball screw (economical type).
12 -> Shaft diameter: 12 mm.
04 → Lead = 4 mm (travel distance per revolution).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SFU1204.
Shaft Diameter: 12 mm.
Lead (Pitch): 4 mm per revolution.
Length: 400 mm.
Nut Type: Flanged ball nut included.
Material: Hardened steel, precision rolled.
Accuracy Grade: C7 (±0.05 mm/300 mm).
Efficiency: ~90%.
