Ball Screw with nut SFU1204 800mm
SKU: CNC-0016-P02
Sold by Select Automation
Final price R 920.86
R 800.75 excl. VAT
Availability: In Stock (3 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

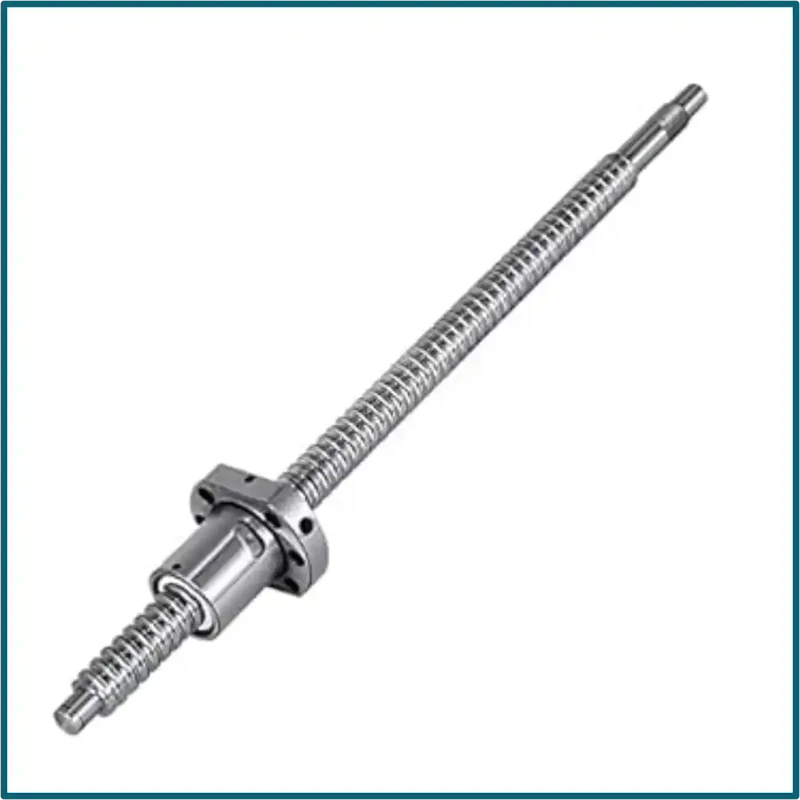

The SFU1204 ball screw assembly is a precise linear motion component for CNC machines, 3D printers, and automation systems.
It is made up of an 800 mm long threaded shaft and a flanged ball nut that slides along the screw with little resistance.
The designation "SFU1204" means:
S: Standard ball screw.
F = Flanged ball nut.
U = Rolled ball screw (economical type).
12 → Shaft diameter = 12 mm.
04 → Lead = 4 mm (distance per revolution).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SFU1204.
Shaft Diameter: 12 mm.
Lead (Pitch): 4 mm per revolution.
Length: 800 mm.
Nut Type: Flanged ball nut included.
Material: Hardened steel, precision rolled.
Accuracy Grade: C7 (±0.05 mm/300 mm).
Efficiency: ~90%.
