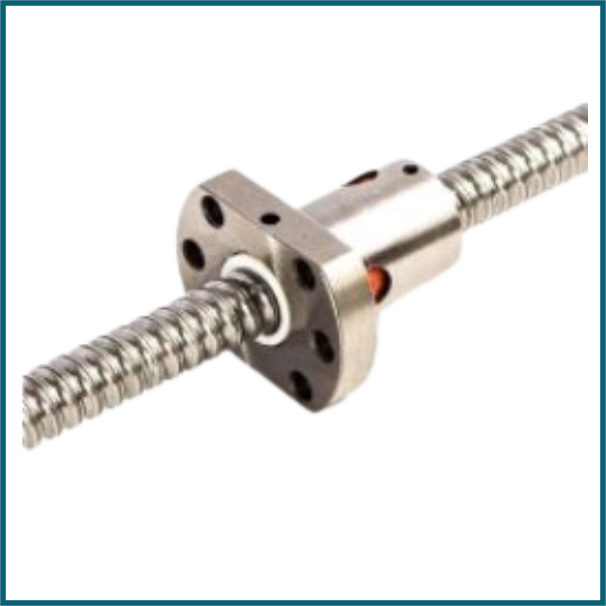

Ball Screw with nut SFU1204 1000mm
SKU: CNC-0017-P02
Sold by Select Automation
Final price R 1,093.65
R 951.00 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SFU1204 ball screw assembly is a precise linear motion component intended for CNC machines, 3D printers, and automation systems.
The screw has a 1000-mm threaded shaft and a flanged ball nut for smooth movement with little friction.
The designation SFU1204 indicates:
shaft diameter: 12mm.
Lead: 4 mm (travel per revolution).
Flanged ball nut (F).
This ball screw offers high efficiency (~90%), minimal friction, and perfect linear motion, making it excellent for applications that require accuracy and longevity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SFU1204.
Shaft Diameter: 12 mm.
Lead (Pitch): 4 mm per revolution.
Length: 1000 mm (1 m).
Nut Type: Flanged ball nut included.
Material: Hardened steel, precision ground or rolled.
Accuracy: C7 grade (±0.05 mm/300 mm) for rolled screws.
Efficiency: ~90% (much higher than trapezoidal/ACME screws).
