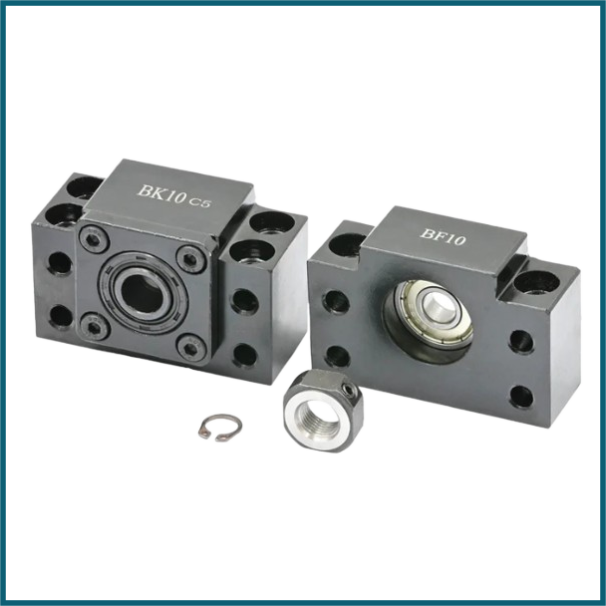

Bearing block set for SFU12 BK10 & BF10
SKU: CNC-0020-P02
Sold by Select Automation
Final price R 391.38
R 340.33 excl. VAT
Availability: In Stock (11 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A "Bearing block set for SFU12 BK10 & BF10" is a pair of support blocks used to securely mount and support both ends of an SFU12 ball screw.
The BK10 is a fixed-end support with a bearing for rotational stability, and the BF10 is a floating-end support to allow some axial movement, ensuring smooth linear motion of the ball screw.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model numbers: BK10 (fixed end) and BF10 (floating end)
Compatible ball screw: SFU12 (12mm diameter ball screw)
Bearing type:
BK10: Contains a deep groove ball bearing or angular contact bearing
BF10: Contains a deep groove ball bearing
Block dimensions:
BK10: ~42mm x 42mm x 27mm (L x W x H)
BF10: ~35mm x 35mm x 22mm (L x W x H)
Material: High-strength steel or aluminum alloy
Bearing preload: Factory-set in BK10 for rigidity
Mounting holes:
BK10: 4 x M5 threads
BF10: 4 x M5 threads
Usage: Provides rotational stability on the BK10 end and flexibility on the BF10 end
Sealing: Both blocks typically have seals to protect the bearings from dust
Operating temperature: Typically up to 80°C depending on bearing lubricant
