Bearing Block Set for SFU12 Ball Screw FK10 and FF10
SKU: CNC-0021-P02
Sold by Select Automation
Final price R 518.01
R 450.44 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

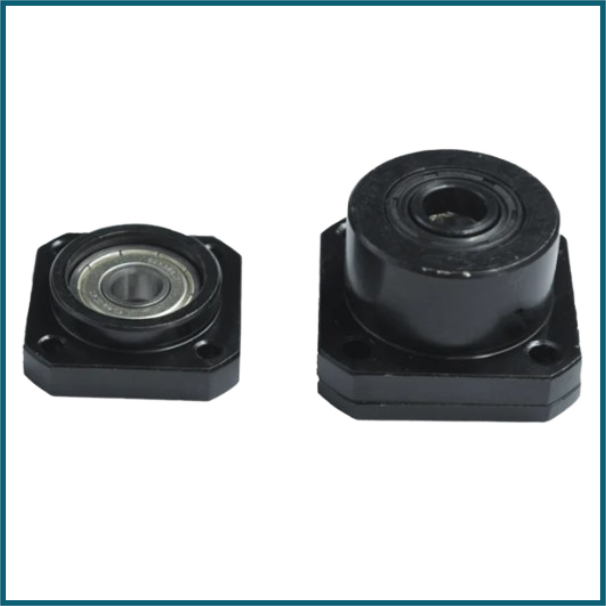

A "Bearing Block Set for SFU12 Ball Screw FK10 and FF10" is a pair of support blocks designed to mount and support both ends of an SFU12 ball screw.
The FK10 is a fixed-end support block that provides rigid support with preloaded angular contact bearings, while the FF10 is a floating-end support block that allows for slight axial movement.
These blocks ensure smooth and stable operation of the ball screw in applications like CNC machines and 3D printers.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model numbers: FK10 (fixed end) and FF10 (floating end)
Compatible ball screw: SFU12 (12mm diameter ball screw)
Bearing type:
FK10: Preloaded angular contact bearing for rigidity
FF10: Deep groove ball bearing for axial movement
Block dimensions:
FK10: ~42mm x 42mm x 27mm (L x W x H)
FF10: ~35mm x 35mm x 22mm (L x W x H)
Material: High-strength steel or aluminum alloy
Bearing preload: Factory-set in FK10 for tight and precise movement
Mounting holes:
FK10: 4 x M5 threads
FF10: 4 x M5 threads
Sealing: Both blocks typically have seals to protect bearings from dust and debris
Usage: FK10 provides rigid support, FF10 allows slight axial flexibility
Operating temperature: Typically up to 80°C, depending on the lubricant used for the bearings
