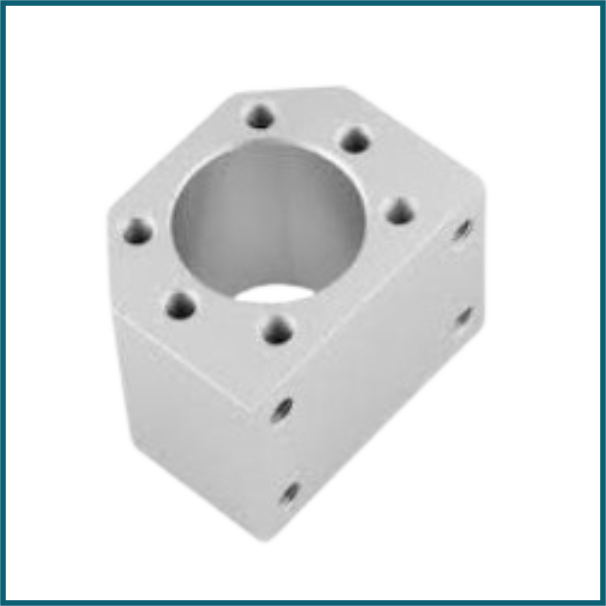

DSG16H (inner hole 28) Aluminum nut housing bracket holder
SKU: CNC-0022-P02
Sold by Select Automation
Final price R 86.23
R 74.98 excl. VAT
Availability: In Stock (15 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The DSG16H aluminium nut housing bracket holder is a precision-machined component used to secure ball screw nuts in CNC machines, automation systems, and 3D printers.
It offers stiff support and alignment, resulting in smooth and accurate linear motion.
The designation DSG16H (inner hole 28) means:
DSG16H is the model type for ball screw nut housing.
Inner hole: 28 mm → Bore size for a secure fit with the nut body.
Aluminium construction is lightweight, durable, and corrosion-resistant.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: DSG16H.
Inner Hole Diameter: 28 mm.
Material: High strength aluminium alloy.
Mounting: Flange holes for easy installation on machine frames.
Compatibility: Used with ball screw nuts for SFU1604 / SFU1605 series ball screws (16 mm shaft diameter).
