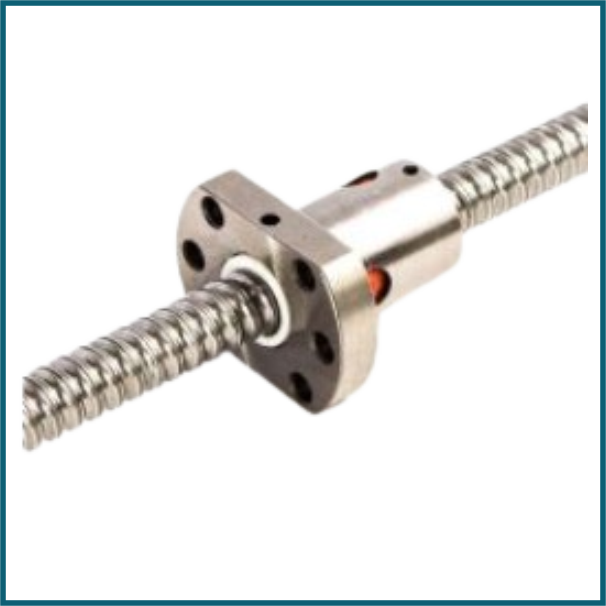

Ball screw with nut SFU1604 500mm
SKU: CNC-0024-P02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SFU1604 ball screw assembly is a precise linear motion component for CNC machines, 3D printers, and automation systems.
It is made up of a threaded shaft that is 500 mm long and a flanged ball nut that slides along the screw with little resistance.
The designation "SFU1604" means:
S: Standard ball screw.
F = Flanged ball nut.
U: Rolled ball screw (economical type).
16 -> Shaft diameter: 16 mm.
04 = Lead = 4 mm (distance travelled per revolution).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SFU1604.
Shaft Diameter: 16 mm.
Lead (Pitch): 4 mm per revolution.
Length: 500 mm.
Nut Type: Flanged ball nut included.
Material: Hardened steel, precision rolled.
Accuracy Grade: C7 (±0.05 mm/300 mm).
Efficiency: ~90%.
