Ball screw with nut SFU1604 600mm
SKU: CNC-0025-P02
Sold by Select Automation
Final price R 805.29
R 700.25 excl. VAT
Availability: In Stock (3 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

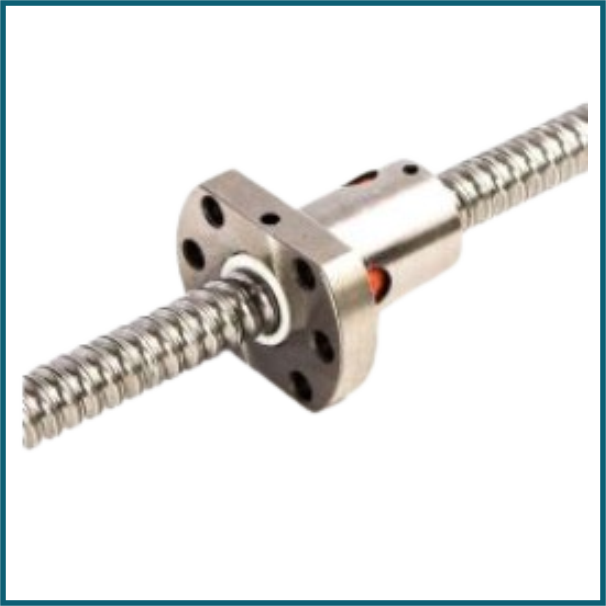

The SFU1604 ball screw assembly is a precise linear motion component intended for CNC machines, 3D printers, and automation systems.
The screw has a 600-mm threaded shaft and a flanged ball nut for smooth movement with little friction.
The designation "SFU1604" means:
S: Standard ball screw.
F = Flanged ball nut.
U: Rolled ball screw (economical type).
16 -> Shaft diameter: 16 mm.
04 = Lead = 4 mm (distance travelled per revolution).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SFU1604.
Shaft Diameter: 16 mm.
Lead (Pitch): 4 mm per revolution.
Length: 600 mm.
Nut Type: Flanged ball nut included.
Material: Hardened steel, precision rolled.
Accuracy Grade: C7 (±0.05 mm/300 mm).
Efficiency: ~90%.
