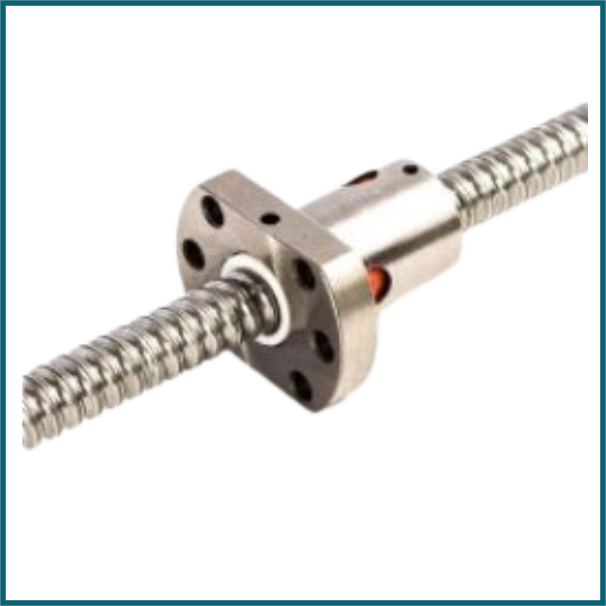

Ball screw with nut SFU1604 1000mm
SKU: CNC-0026-P02
Sold by Select Automation
Final price R 1,093.65
R 951.00 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SFU1604 ball screw assembly is a precise linear motion component for CNC machines, 3D printers, and automation systems.
The screw has a 1000-mm threaded shaft and a flanged ball nut for smooth movement with little friction.
The designation "SFU1604" means:
S: Standard ball screw.
F = Flanged ball nut.
U = Rolled ball screw (economical type).
16 → Shaft diameter = 16 mm.
04 → Lead = 4 mm (distance per revolution).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SFU1604.
Shaft Diameter: 16 mm.
Lead (Pitch): 4 mm per revolution.
Length: 1000 mm (1 m).
Nut Type: Flanged ball nut included.
Material: Hardened steel, precision rolled.
Accuracy Grade: C7 (±0.05 mm/300 mm).
Efficiency: ~90%.
