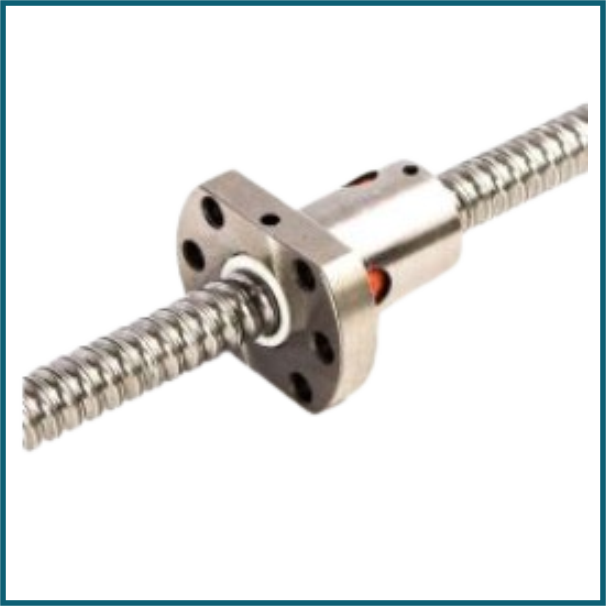

Ball screw with nut SFU1604 1500mm
SKU: CNC-0027-P02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The SFU1604 ball screw assembly is a precise linear motion component intended for CNC machines, 3D printers, and automation systems.
The screw has a 1500-mm threaded shaft and a flanged ball nut that operates smoothly with low friction.
The designation "SFU1604" means:
S: Standard ball screw.
F = Flanged ball nut.
U = Rolled ball screw (economical type).
16 → Shaft diameter = 16 mm.
04 → Lead = 4 mm (distance per revolution).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SFU1604.
Shaft Diameter: 16 mm.
Lead (Pitch): 4 mm per revolution.
Length: 1500 mm (1.5 m).
Nut Type: Flanged ball nut included.
Material: Hardened steel, precision rolled.
Accuracy Grade: C7 (±0.05 mm/300 mm).
Efficiency: ~90%.
