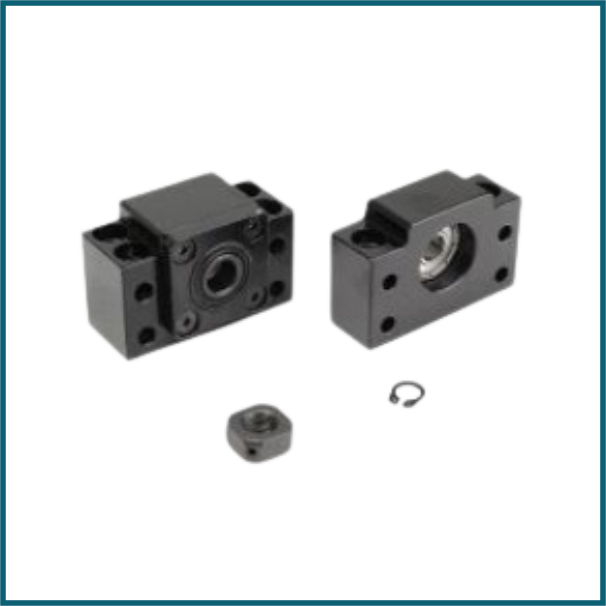

Bearing block set for SFU16 BK12 & BF12
SKU: CNC-0028-P02
Sold by Select Automation
Final price R 518.01
R 450.44 excl. VAT
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A Bearing block set for SFU16 BK12 & BF12 is a pair of support blocks designed to securely mount and support both ends of an SFU16 ball screw, which has a 16mm diameter.
The BK12 block is a fixed support that provides stability, while the BF12 block is a floating support that allows for axial movement.
This setup is commonly used in CNC machines and other applications where precise linear motion is needed.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model numbers: BK12 (fixed end) and BF12 (floating end)
Compatible ball screw: SFU16 (16mm diameter ball screw)
Bearing type:
BK12: Deep groove ball bearing for rigid support
BF12: Deep groove ball bearing for axial flexibility
Block dimensions:
BK12: Approximately 42mm x 42mm x 30mm (L x W x H)
BF12: Approximately 35mm x 35mm x 22mm (L x W x H)
Material: High-strength steel or aluminum alloy
Mounting holes:
BK12: 4 x M6 threaded holes
BF12: 4 x M5 threaded holes
Usage: BK12 provides stable, fixed support, while BF12 allows for slight axial movement
Sealing: Both blocks typically have seals to protect bearings from dust
Operating temperature: Typically up to 80°C, depending on bearing lubricant
Application: Commonly used in CNC machines, 3D printers, and other precision machinery for accurate linear motion.
