Bearing block set for SFU16 FK12 & FF12
SKU: CNC-0029-P02
Sold by Select Automation
Final price R 509.23
R 442.81 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

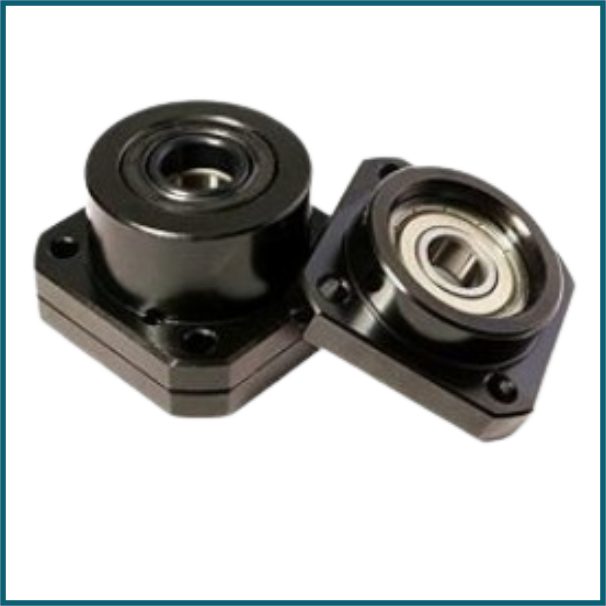

A "Bearing block set for SFU16 FK12 & FF12" is a pair of support bearings commonly used in ball screw systems.
The set typically includes an FK12 fixed-end support bearing and an FF12 floating-end support bearing for use with a 16mm diameter ball screw (SFU16).
The FK12 is mounted on the motor side (fixed side), while the FF12 is placed on the free side to allow axial movement, maintaining proper alignment and smooth rotation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
FK12 (Fixed-end bearing):
Bearing type: Angular contact bearing
Internal bearing model: Usually 7001 or 7002
Mounting holes: 4 holes
Mounting pattern: Square
Application: Mounted at the motor side (fixed support)
FF12 (Floating-end bearing):
Bearing type: Deep groove ball bearing
Internal bearing model: 6001 or 6002
Mounting holes: 4 holes
Mounting pattern: Square
Application: Free-end support to allow axial movement
Compatibility: For SFU1604, SFU1605 ball screws (16mm diameter)
Material: Steel/aluminum
Precision: High for smooth, accurate linear motion
Dimensions: FK12 and FF12 typically have the same outer dimensions but different bearing internals.
