Ball screw with nut SFU2010 1000mm
SKU: CNC-0034-P02
Sold by Select Automation
Final price R 1,323.60
R 1,150.96 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

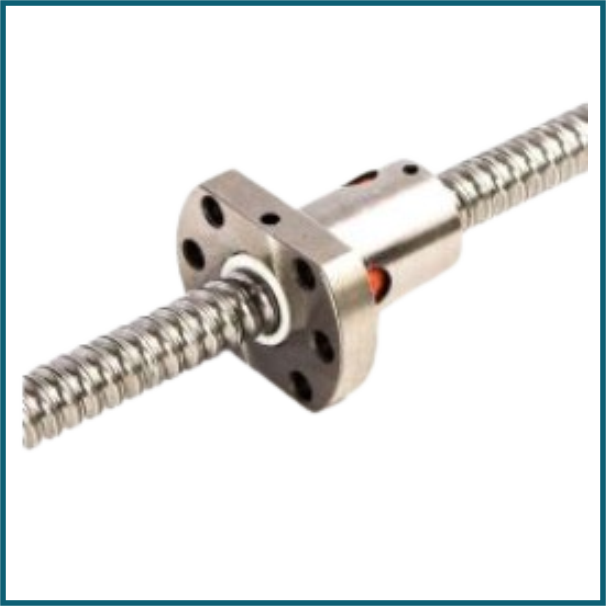

The SFU2010 ball screw assembly is a heavy-duty precision linear motion component used in CNC machines, industrial automation, and large 3D printers.
The screw has a 1000-mm threaded shaft and a flanged ball nut for smooth movement with little friction.
The SFU2010 designation means:
S: Standard ball screw.
F = Flanged ball nut.
U = Rolled ball screw (economical type).
20 → Shaft diameter = 20 mm.
Lead = 10mm (distance travelled per rotation).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SFU2010.
Shaft Diameter: 20 mm.
Lead (Pitch): 10 mm per revolution (fast travel).
Length: 1000 mm (1 m).
Nut Type: Flanged ball nut included.
Material: Hardened steel, precision rolled.
Accuracy Grade: C7 (±0.05 mm/300 mm).
Efficiency: ~90%.
