Ball screw with nut SFU2010 1500mm
SKU: CNC-0035-P02
Sold by Select Automation
Final price R 1,553.41
R 1,350.79 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

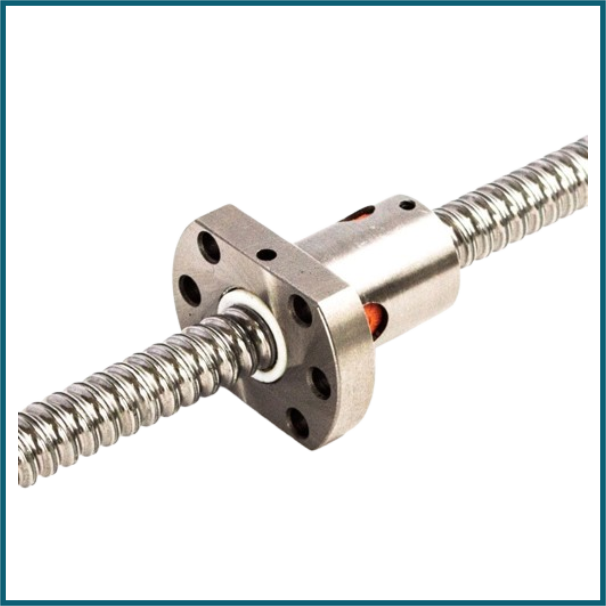

The SFU2010 ball screw assembly is a heavy-duty precision linear motion component suitable for CNC machines, industrial automation, and large 3D printers.
The screw is made up of a 1500-mm threaded shaft and a flanged ball nut that moves smoothly and with low friction.
The SFU2010 designation means:
S: Standard ball screw.
F = Flanged ball nut.
U: Rolled ball screw (economical type).
20 -> Shaft diameter = 20 mm
Lead = 10mm (distance travelled per rotation).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SFU2010.
Shaft Diameter: 20 mm.
Lead (Pitch): 10 mm per revolution (fast travel).
Length: 1500 mm (1.5 m).
Nut Type: Flanged ball nut included.
Material: Hardened steel, precision rolled.
Accuracy Grade: C7 (±0.05 mm/300 mm).
Efficiency: ~90%.
