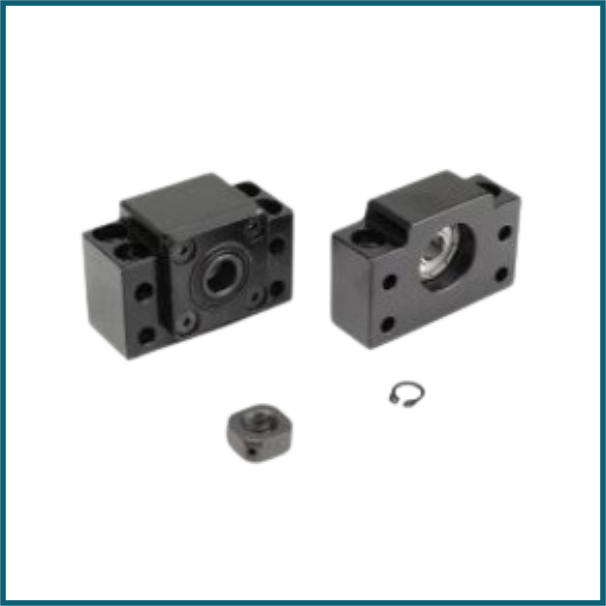

Bearing block set for SFU20 BK15 & BF15
SKU: CNC-0037-P02
Sold by Select Automation
Final price R 1,553.41
R 1,350.79 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A "Bearing block set for SFU20 BK15 & BF15" is a pair of support bearings designed for use with SFU20 ball screws (20mm diameter).
The set includes a BK15 fixed-end support bearing and a BF15 floating-end support bearing.
The BK15 supports the motor side (fixed), while the BF15 supports the free end, allowing axial movement.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
BK15 (Fixed-end bearing):
Bearing type: Angular contact bearing
Internal bearing model: Typically 7202 or 7203
Mounting holes: 4 holes
Mounting pattern: Square
Application: Fixed support at the motor side
BF15 (Floating-end bearing):
Bearing type: Deep groove ball bearing
Internal bearing model: Typically 6002 or 6003
Mounting holes: 4 holes
Mounting pattern: Square
Application: Free-end support allowing axial movement
Compatibility: For SFU2004, SFU2005 ball screws (20mm diameter)
Material: Steel/aluminum
Precision: High for smooth, accurate linear motion
Dimensions: BK15 and BF15 typically have matching outer dimensions but different internal bearings
