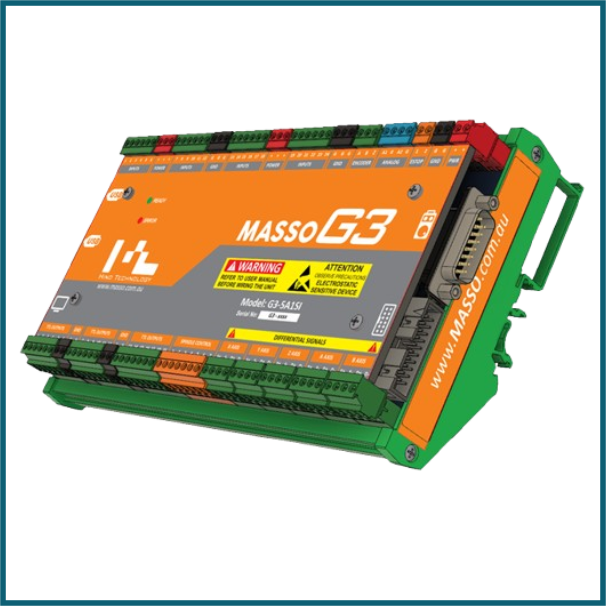

G3-SA15I-M5 MASSO G3 MILL Controller 5 Axis
SKU: CNC-0042-P02
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The MASSO G3 SA15I M5 is a specialized 5-axis CNC mill controller designed for precision machining without a PC.
It is part of the MASSO G3 series, which offers stand-alone CNC control solutions with integrated software and touchscreen operation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: G3 SA15I M5.
Type: 5 axis CNC controller (dedicated hardware, no PC required).
Display: 7 inch touchscreen interface for easy navigation.
Pulse Rate: 110 kHz per axis (high precision motion control).
Inputs: 24 isolated inputs.
Outputs: 18 outputs.
Drive Compatibility: Step & direction signals for stepper or servo drives.
Spindle Control: Direct spindle control with 0–10 V analogue output, CW/CCW support.
Connectivity: USB port for file transfer and G code loading.
Software: Built in MASSO control software (no external PC required).
Power Supply: Standard industrial DC input.
