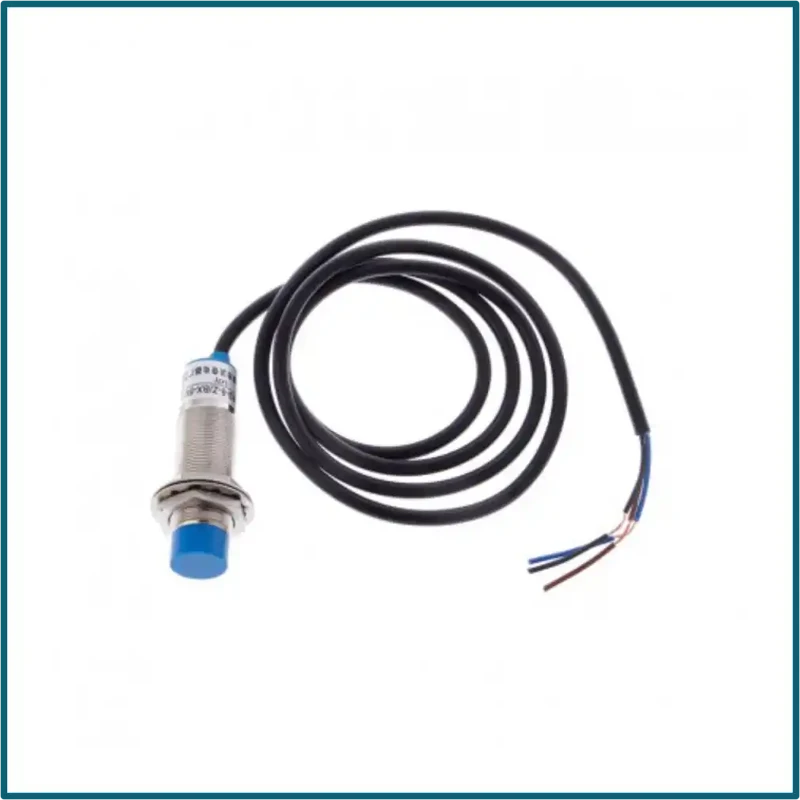

INDUCTIVE PROXIMITY SWITCH (5V - 30V DC)
SKU: CNC-0044-P02
Sold by Select Automation
Final price R 97.62
R 84.89 excl. VAT
Availability: In Stock (33 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
An inductive proximity switch (5-30 V DC) detects metallic objects using an electromagnetic field.
When a metal target enters this field, the sensor registers it and modifies the output state.
These sensors are frequently utilized in automation, robotics, CNC machinery, and industrial equipment due to their durability, speed, and dependability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: SN04 N.
Operating Voltage: 10–30 V DC.
Detection Range: 4 mm.
Output Type: NPN, Normally Open (NO).
Current Consumption: ≤ 5 Ma.
Output Current Capacity: Up to 300 mA.
Response Time: < 0.5 ms.
Housing Material: ABS flame resistant plastic.
Indicators: Red LED for operating status.
Protection Features: Short circuit, reverse polarity protection.
IP Rating: IP67 (dust and water resistant).
Operating Temperature: –25 °C to +75 °C.
Weight: 35 g.
