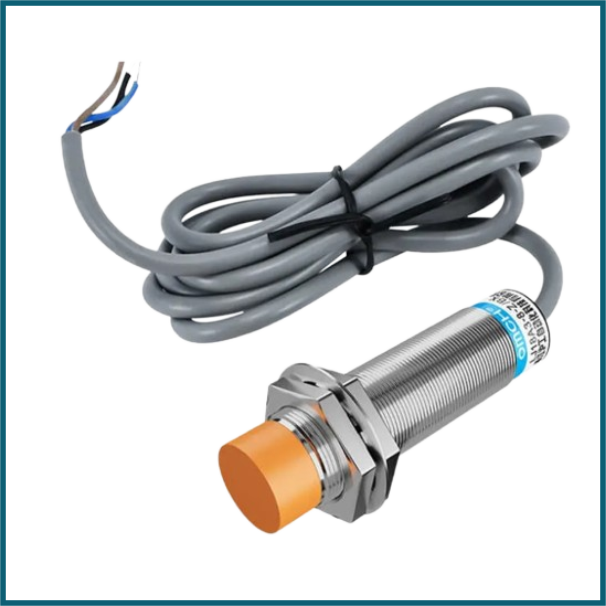

NPN OPEN Inductive Proximity Sensor 8mm N/O M18 LJ18A3-8-Z/BX
SKU: CNC-0045-P01
Sold by Select Automation
Final price R 64.61
R 56.18 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The LJ18A3-8-Z/BX is a high-performance inductive proximity sensor engineered for reliable non-contact detection of metallic objects in industrial automation, machinery, and process control applications.
Utilizing electromagnetic induction technology, the sensor detects ferrous and conductive metal targets without physical contact, ensuring minimal wear and long operational life.
Housed in a robust M18 threaded cylindrical metal body, the sensor is designed to perform reliably in demanding industrial environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Inductive Proximity Sensor.
Model: LJ18A3-8-Z/BX.
Sensor Type: Inductive (Metal Detection).
Output Type: NPN Normally Open (NO).
Sensing Distance: 8 mm ±10%.
Operating Voltage: 6–36V DC.
Output Current: Up to 200–300 Ma.
Response Frequency: Up to 500 Hz.
Housing Size: M18 threaded cylindrical body.
Housing Material: Nickel-plated brass / metal.
Protection Rating: IP67.
Connection Type: 3-wire cable.
