      Inductive Proximity Sensor 4mm PNP NO LJ12A3-4-Z/BY

      SKU: CNC-0046-P02

      Out of stock

      Availability: Out of Stock

      Short Description

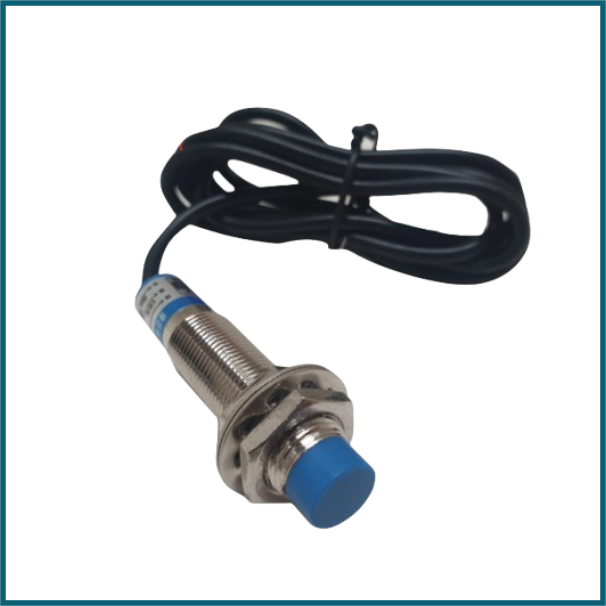

      The LJ12A3-4-Z/BY is a cylindrical inductive proximity sensor intended for non-contact detection of metallic objects. This sensor, which has a 4mm detecting distance, PNP normally open (NO) output, and a sturdy metal housing, is perfect for industrial automation, machinery, conveyor systems, and position sensing applications. The sensor recognizes metal objects without making physical touch, which reduces wear and improves dependability in harsh situations.
      CNC-0046-P02
      Alternative image 1
      Specifications Model: LJ12A3-4-Z/BY Operating Voltage|: 6V to 36V DC-90V to 260V AC Detection Distance: 4m Sensor Type: Inductive Transistor Configuration: PNP Connection Configuration: Normally Open DC/AC Response Frequency: 400Hz/25Hz Wiring Labels: Brown = VCC– Black = Signal Output (Z-Stop)– Blue = GND Head Diameter: 12mm Cable Length: 110cm Dimensions: 20mm Diameter | 62mm Length
