LJ12A3-4-Z/AY Inductive Proximity Sensor – 4mm PNP
SKU: CNC-0047-P02
Sold by Select Automation
Final price R 230.00
R 200.00 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

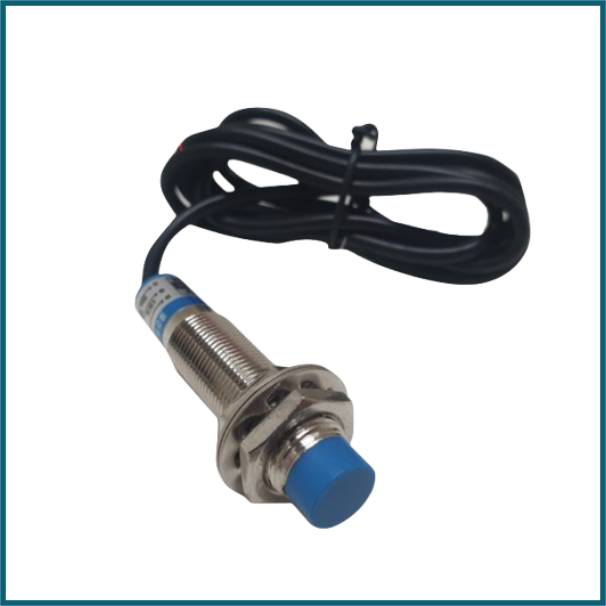

The LJ12A3-4-Z/AY Inductive Proximity Sensor is a compact M12 cylindrical sensor that detects metal objects reliably and without contact.
It is suitable for usage in CNC machines, automation systems, robotics, positioning equipment, and industrial control applications due to its 4mm detection distance and PNP Normally Closed (N/C) output signal.
The sensor runs at 6-36V DC and has a 3-wire connection for easy integration with control systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: LJ12A3-4-Z/AY.
Sensor Type: Inductive Proximity Sensor.
Sensing Distance: 4mm.
Output: PNP.
Connection: 3-wire.
Operating Voltage: 6–36V DC.
Output Current: Up to 300mA.
Response Frequency: 500Hz.
Sensor Diameter: 12mm.
Detection Target: Metal.
Protection Rating: IP65.
Housing: Nickel-plated brass.
Output Indicator: Red LED.
Operating Temperature: -25°C to +70°C.
