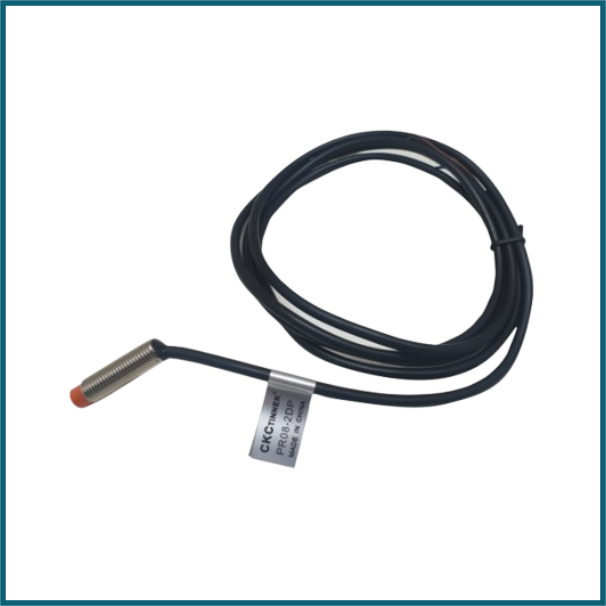

Inductive Proximity Sensor 2mm PNP PR08-2DP
SKU: CNC-0049-P02
Sold by Select Automation
Final price R 287.50
R 250.00 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The PR08-2DP Inductive Proximity Sensor is a compact M8 cylindrical sensor that detects metal objects accurately and without contact
It has a 2mm sensing distance and a PNP Normally Open (N/O) output, making it ideal for industrial automation, position sensing, item detection, counting, and machine control applications.
The sensor operates on 10–30V DC and uses a 3-wire, 2-metre cable connection. It has an IP67-rated housing to protect against industrial hazards.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: PR08-2DP.
Type: Inductive Proximity Sensor.
Sensing Distance: 2mm.
Output: PNP, Normally Open (N/O).
Wiring: 3-wire.
Supply Voltage: 10–30V DC.
Sensor Size: M8 / Ø8mm.
Cable Length: 2m.
Protection Rating: IP67.
Maximum Load Current: 200mA.
Response Frequency: 1kHz.
Housing: Nickel-plated brass.
Installation: Non-flush.
Operating Temperature: -25°C to +70°C.
