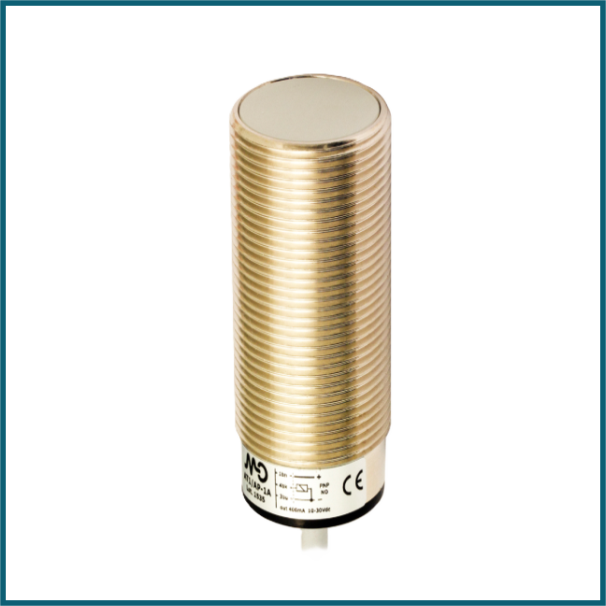

Inductive Sensor M30 Shielded NO/NPN Cable 2m Axial
SKU: CNC-0050-P02
Price on request
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Inductive Sensor M30 Shielded NO/NPN Cable 2m Axial is a heavy-duty cylindrical proximity sensor developed for accurate non-contact detection of metallic objects in industrial automation.
This sensor has an M30 threaded shielded housing, a Normally Open (NO) NPN output, and a 2m axial cable connection, providing for reliable and accurate switching performance when flush mounting in metal surfaces.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Nominal sensing distance: 10mm.
Operating distance: 0…8,1mm.
Standard target: 30x30mm FE360.
Correction Factor: copper: 0,35 / aluminum: 0,45 / brass: 0,50 / stainless steel: 0,75.
Thermal drift of Sr: < 10%.
Repeat Accuracy: < 5% (UB 24V Ta=23°C ±5°C).
Hysteresis: 1 … 20%.
Application:
Description: M30 standard flush mount.
Functions: Proximity.
Outputs:
Output type: NPN.
Output Function: NO.
Switching frequency: 200Hz.
Operating Voltage: 10...30Vdc.
Mounting: Shielded.
Housing Material: Nickel-plated brass.
Connections: 2m PVC Cable.
Active Head Material: PBT.
Tightening torque: 50Nm.
Operating temperature: -25°C…+70°C.
Material: Nickel-plated brass.
Diameter/Dimension: M30.
