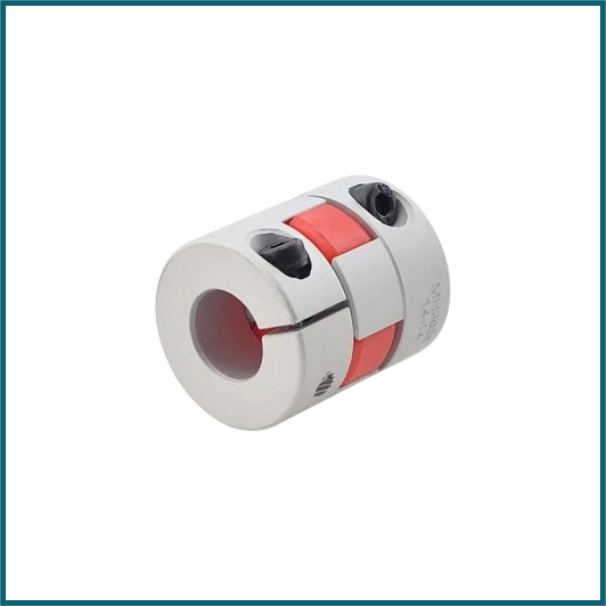

Flexible Jaw Coupler 14mm–14mm | 30x35mm MH3035-14-14
SKU: CNC-0052-P02
Price on request
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Flexible Jaw Coupler 14mm × 14mm connects two 14mm shafts, reducing vibration and absorbing shock loads in motion control systems.
For CNC machines, stepper motor systems, servo motor systems, automation equipment, and general power transmission applications, the jaw coupling design offers dependable torque transmission while allowing for slight shaft misalignment.
This connection, made of aluminium, combines great strength with low weight, making it ideal for applications that require dependable torque transmission and vibration damping.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Jaw Type.
Rated Torque: 6.5Nm (919.29oz.in).
Max. Torque: 13Nm (1840.52oz.in).
Max. Speed: 15000rpm.
Moment of Inertia: 8.5 × 10⁻⁶ kg·m².
Static Torsional Spring Constant: 72Nm/rad.
Bore Diameter: 14mm – 14mm.
Body Outside Diameter: 30mm.
Body Length: 35mm.
Material Type: Aluminium.
Weight: 50g.
