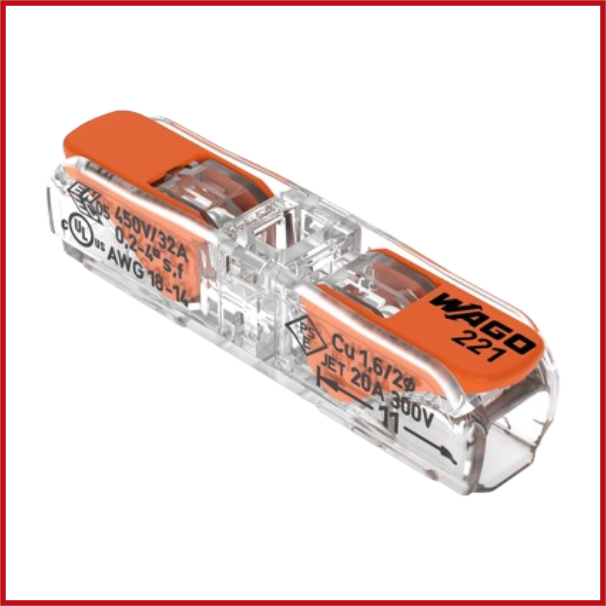

Wago 221 Lever Type Inline Splicing Connector 1 Way 0.2-4mm 221-2411
SKU: CON1-0000-000
Sold by Select Automation
Final price R 23.72
R 20.63 excl. VAT
Availability: In Stock (243 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The inline splicing connector with levers ensures easy electrical installation.
WAGO's 221 Series splicing connector allows you to rapidly and securely connect multiple conductor types, whether you're wiring an intercom system or connecting an electrical oven.
Rated current and voltage are key criteria to consider when choosing a splicing connection because they indicate feasible applications and uses.
The rated voltage is 450 V and the rated current is 32 A, making it appropriate for high-load applications.
Strip lengths must be 11 mm when joining conductors to an inline splicing connector using levers.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Connection technology: CAGE CLAMP®.
Actuation type: Lever.
Connectable conductor materials: Copper.
Nominal cross-section: 4mm²/12AWG.
Solid conductor: 0.2…4mm²/ 20…14 AWG.
Stranded conductor: 0.2…2.5mm²/18…14 AWG.
Fine-stranded conductor: 0.2…4mm²/18…14 AWG.
Strip length: 11 mm / 0.43 inches.
Nominal voltage: 450 V.
Rated current: 32 A.
