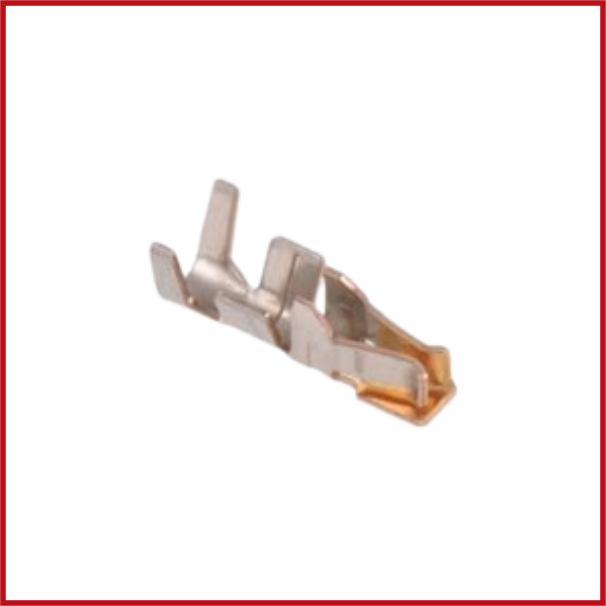

Hirose, DF11 Female Crimp Terminal Contact 22AWG DF11-22SCA (10PCS)
SKU: CON1-0002-000
Sold by Select Automation
Final price R 33.78
R 29.37 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Hirose DF11-22SCA is a female crimp terminal contact intended for use with Hirose DF11 Series 2.0mm-pitch connector housing.
It is crimped onto a separate wire and inserted into a compatible DF11 female connector housing to form a secure wire-to-board or wire-to-wire connection.
The contact is gold plated for reliable electrical performance and has a current rating of up to 2A.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Contact Type: Female crimp terminal.
For Use With: DF11 Connector Housing.
Current: 2A.
Minimum Wire Size AWG: 30AWG.
Maximum Wire Size AWG: 22AWG.
Maximum Wire Size mm²: 0.3mm².
Termination Type: Crimp.
