Molex Male Pins
SKU: CON1-0005-000
Sold by Select Automation
Final price R 5.11
R 4.44 excl. VAT
Availability: In Stock (48 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

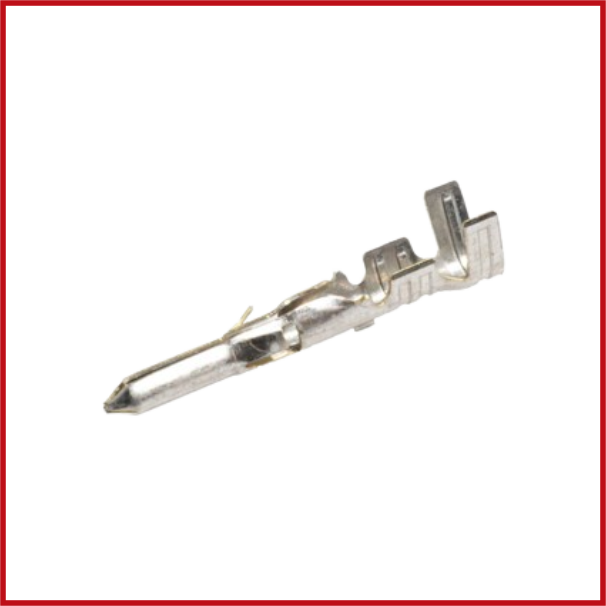

The Molex 1190 Series male crimp terminal contact is designed to terminate electrical lines and fit into a suitable connector housing.
This contact is compatible with Molex STANDARD.093" connector housings and supports wire widths ranging from 20AWG to 14AWG (0.5-2mm²).
Its tin-plated brass structure ensures dependable electrical contact.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Crimp Terminal Contact.
Gender: Male.
Termination Style: Crimp.
Wire Size: 20AWG to 14AWG.
Wire Cross-Section: 0.5–2mm².
Compatible Connector Housing: Molex STANDARD .093".
Contact Material: Brass.
Contact Plating: Tin.
Maximum Contact Resistance: 10mΩ.
Wire Insulation Diameter: 1.65–4.06mm.
Maximum Mating Cycles: 25.
Operating Temperature: -40°C to +105°C.
Application: Wiring harnesses, electronic equipment, communications, networking and industrial electrical connections.
