08-52-0072 Contact Socket 24-18 AWG Crimp
SKU: CON1-0007-000
Incl. VAT R 0.00
R 0.00 excl. VAT
Availability: In Stock (27 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

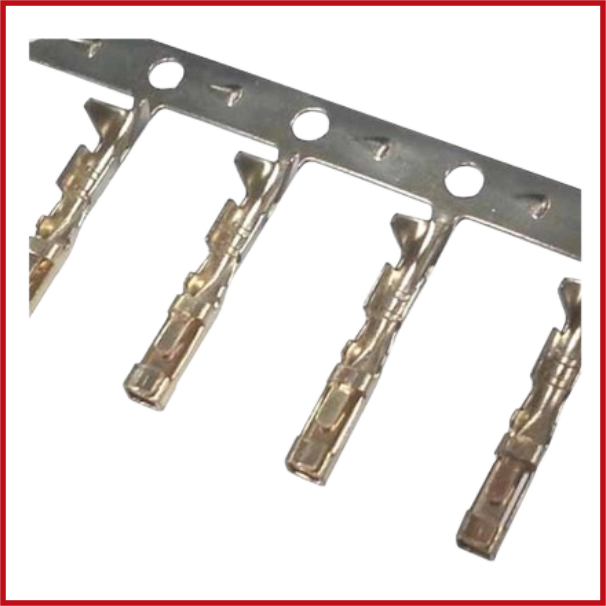

The Molex 08-52-0072 is a female crimp socket contact from the Molex KK® 2478 / KK 396 Series that is intended for reliable wire-to-board power and signal connections.
This open-barrel crimp contact, suitable for 24-18 AWG wire, is made of phosphor bronze with tin plating for high conductivity, corrosion resistance, and long-term reliability.
The contact, designed for use with compatible Molex KK 3.96 mm connector housings, provides dependable terminal retention and is perfect for industrial equipment, power supply, appliances, and general electronics assemblies.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Manufacturer: Molex.
Manufacturer Part Number: 08-52-0072.
Series: KK® 2478 / KK® 396.
Product Type: Female Crimp Socket Contact.
Contact Gender: Socket (Female).
Termination Type: Open Barrel Crimp.
Wire Size: 24–18 AWG.
Contact Material: Phosphor Bronze.
Contact Finish: Tin Plated.
Rated Voltage: Up to 250 V.
Mounting Type: Cable Mount.
Compatible Connector Series: Molex KK 396 (3.96 mm) Housings.
RoHS Compliant: Yes.
