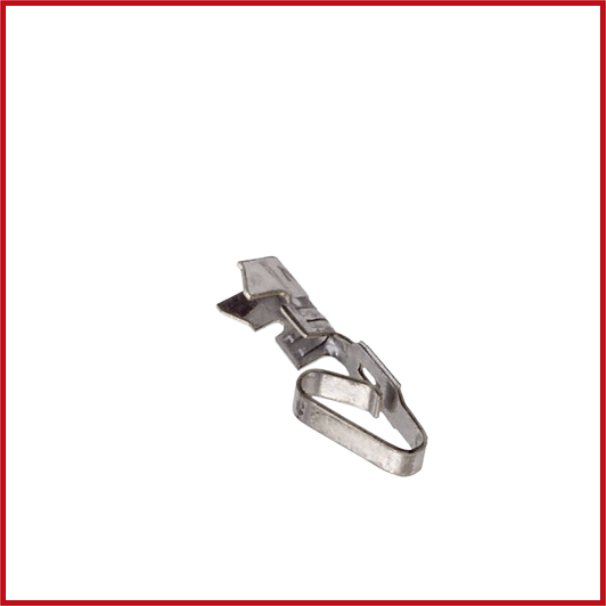

Molex KK 396 2478 Crimp Terminal Contact, Female, 0.2mmý to 0.8mmý, 24AWG to 18AWG, Tin Plating
SKU: CON1-0009-000
Sold by Select Automation
Final price R 3.40
R 2.96 excl. VAT
Availability: In Stock (88 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Molex KK 396 Series 2478 Female Crimp Terminal Contact is a high-quality crimp contact that works with Molex KK 396 Series wire-to-board connector housings.
This termination is designed for 0.2 mm² to 0.8 mm² (24-18 AWG) stranded wire and has a tin-plated copper alloy structure for high conductivity and corrosion resistance.
The terminal, designed for use in industrial, automotive, consumer electronics, and power applications, delivers robust mechanical retention and electrical performance when properly crimped with the required tools.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Female Crimp Terminal Contact.
Series: Molex KK 396.
Series Number: 2478.
Connector Type: Wire-to-Board.
Contact Gender: Female.
Termination Type: Crimp.
Wire Size: 0.2–0.8 mm².
Wire Gauge: 24–18 AWG.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Current Rating: Up to 7 A.
Voltage Rating: Up to 250 V.
Mounting Type: Cable Mount.
Compatible Housing: Molex KK 396 Series Receptacle Housings.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
