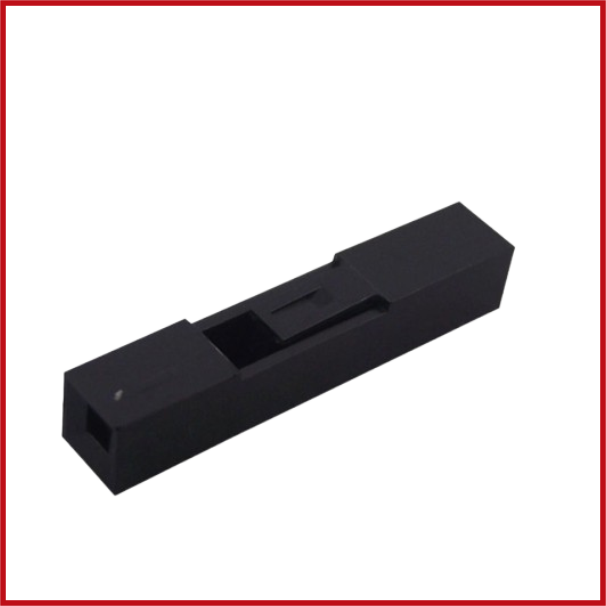

2.54mm Pitch, 1 Way, 1 Row Female Connector Housing ( PINS CON1-0018)
SKU: CON1-0017-000
Sold by Select Automation
Final price R 7.14
R 6.21 excl. VAT
Availability: In Stock (35 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2.54mm Pitch 1-Way Female Connector Housing is a small wire-to-board connector housing intended for secure and dependable single-circuit electrical connections.
This cable-mount housing has a 1-position, single-row layout with a pitch of 2.54 mm, accepts suitable female crimp terminals, and mates with standard 2.54 mm PCB pin headers.
The housing, made of UL94 V-0 flame-retardant nylon, has good mechanical strength, secure terminal retention, and long-term reliability.
Its modest size makes it perfect for jumper leads, prototype boards, embedded systems, industrial controls, and general electronic applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Female Connector Housing.
Number of Positions: 1 Way.
Configuration: 1 Row.
Pitch: 2.54 mm (0.100").
Connector Type: Female Housing.
Mounting Type: Cable Mount.
Termination Type: Crimp.
Connection Type: Wire-to-Board.
Compatible Contacts: 2.54 mm Female Crimp Terminals.
Compatible Header: 2.54 mm Pitch Male Pin Header.
Housing Material: PA66 Nylon, UL94 V-0 Flame-Retardant.
Colour: Black.
Operating Temperature: -25°C to +85°C.
RoHS Compliant: Yes.
