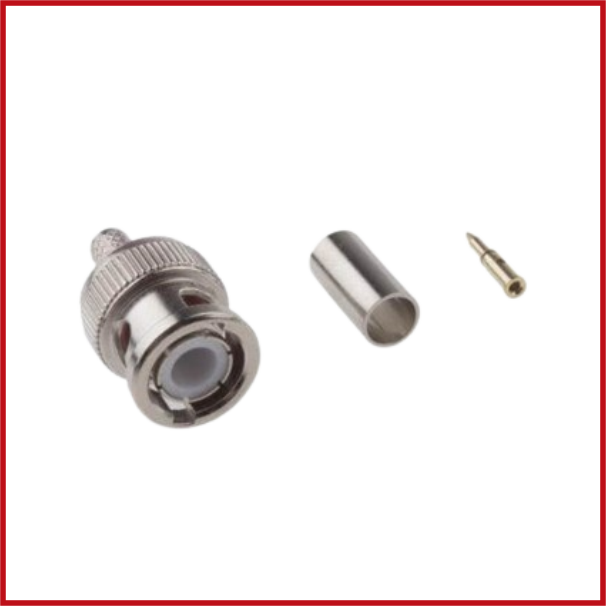

Cable Mount BNC Connector plug nickel crimp Termination RG58 1 way
SKU: CON1-0035-000
Sold by Select Automation
Final price R 34.05
R 29.61 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Cable-mount BNC male connector designed to terminate RG58 coaxial cable.
It has a crimp termination mechanism to provide a secure connection and has a nickel-plated body for longevity and corrosion resistance.
The connector is appropriate for RF, video, and test/measurement applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: BNC Connector Plug.
Gender: Male.
Mounting Type: Cable Mount.
Number of Ways: 1 Way.
Cable Type: RG58.
Termination Method: Crimp.
Impedance: 50Ω.
Body Orientation: Straight.
Coupling Type: Bayonet Lock.
Body Material: Metal.
Body Plating: Nickel.
Contact Plating: Gold.
Application: RF, coaxial cable, test and measurement applications.
