Hirschman Banana Test Conn 4mm 24A (Red) 1 pin
SKU: CON1-0037-000
Sold by Select Automation
Final price R 126.62
R 110.10 excl. VAT
Availability: In Stock (15 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

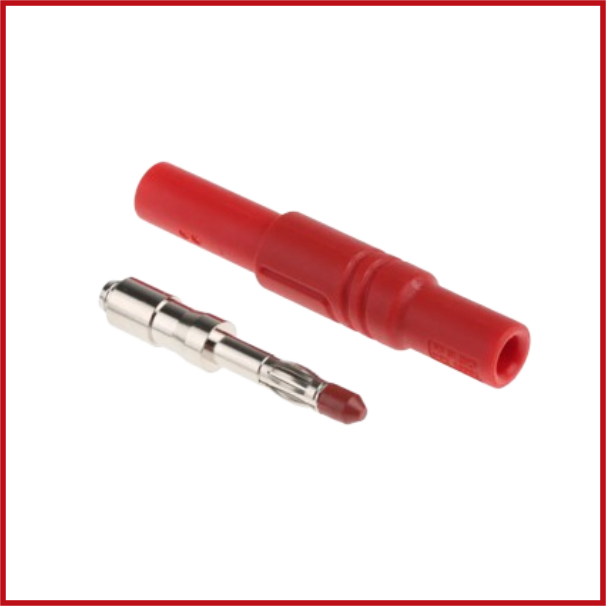

The red 4mm male banana plug is intended for reliable electrical test and measurement connections.
It includes a screw termination for secure wire attachment and a nickel-plated contact.
The plug is compatible with 4mm test sockets and connectors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Banana Plug.
Gender: Male.
Colour: Red.
Connector Size: 4mm.
Termination Method: Screw.
Voltage Rating: 1000V AC/DC.
Current Rating: 24A.
Contact Plating: Nickel.
Contact Material: Beryllium Copper Alloy.
Spring Contact: Yes.
Insulation Material: Polyamide.
Length: 54.3mm.
Compatible Lead Size: 0.5mm² to 1.5mm².
Maximum Cable Outer Diameter: 3.2mm.
Standards/Approvals: IEC 61010, UL.
Safety Category: CAT III.
