CT3201-0 - Banana Plug Solderless Black 1 pin
SKU: CON1-0040-000
Sold by Select Automation
Final price R 173.91
R 151.23 excl. VAT
Availability: In Stock (12 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

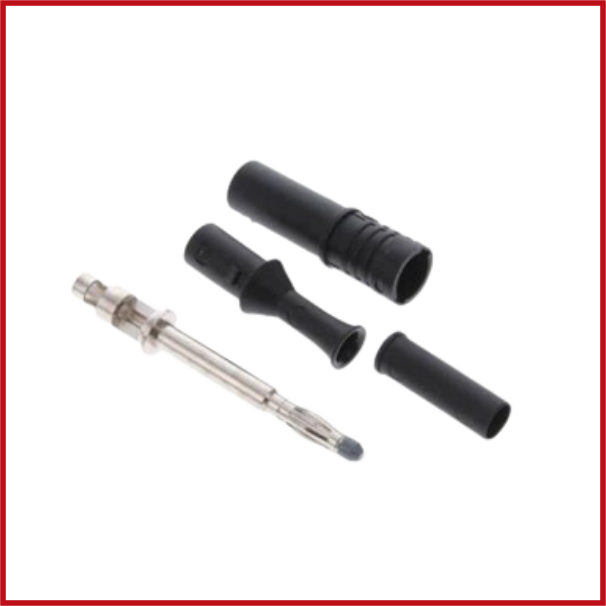

The CT3201-0 is a black 4mm male banana plug with a retractable insulated sheath and a solderless set-screw wire terminal.
It is intended for DIY test lead assembly and ensures a secure connection without the need of solder.
The plug is ideal for electrical test and measurement applications and is rated up to 600V CAT II and 36A when used with a suitably rated test lead wire.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Banana Plug.
Gender: Male.
Pin/Contact: 1 Pin.
Connector Size: 4mm.
Colour: Black.
Termination Method: Solderless / Set Screw.
Insulation: Sheathed, Retractable.
Contact Material: Brass / Beryllium Copper.
Contact Plating: Nickel.
Maximum Current: 36A.
Voltage Rating: 600V CAT II.
Wire Size: 12 AWG.
Mounting Type: Free-Hanging / In-Line.
Body Material: Polyamide (PA), Nylon.
Operating Temperature: -20°C to +80°C.
RoHS: Compliant.
