CT3201-2 - Banana Plug Solderless Red 1 pin
SKU: CON1-0041-000
Sold by Select Automation
Final price R 177.87
R 154.67 excl. VAT
Availability: In Stock (4 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

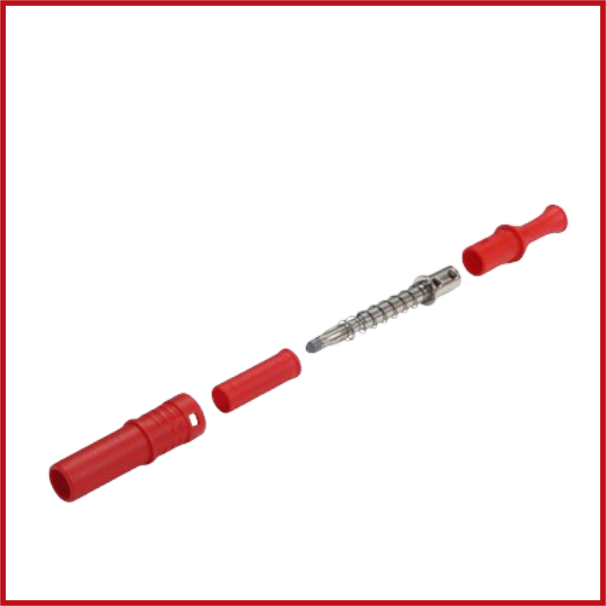

The CT3201-2 is a red, 4mm male banana plug with a retractable insulated sleeve and solderless terminals.
It is intended for do-it-yourself test-lead assembly and secures the wire using a dual set-screw connection rather than soldering.
When used with an adequately rated test lead wire, the plug can withstand up to 600V CAT II and 36A current.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Banana Plug.
Gender: Male.
Number of Pins: 1 Pin.
Connector Size: 4mm.
Colour: Red.
Termination Method: Solderless / Dual Set Screw.
Insulation: Sheathed, Retractable.
Contact Material: Beryllium Copper.
Contact Plating: Nickel.
Body Material: Polypropylene (PP).
Maximum Current: 36A.
Voltage Rating: 600V CAT II.
Compatible Wire: Up to 12 AWG / 2.0mm conductor diameter.
Operating Temperature: -20°C to +80°C.
Mounting Type: Free-Hanging / In-Line.
Compliance: CE, RoHS 2.
