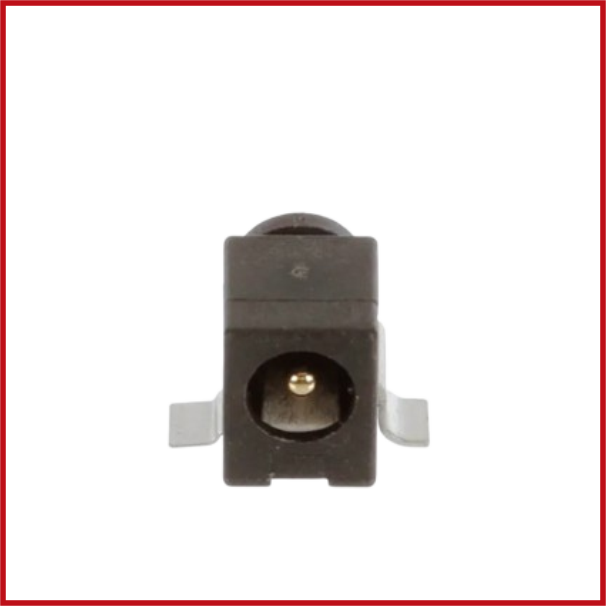

Surface Mount DC Power Socket WR-DC Series, 5.5mm Right Angle 5A
SKU: CON1-0045-000
Sold by Select Automation
Final price R 37.96
R 33.01 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The surface-mount DC power socket is ideal for PCB attachment.
It has a right-angle orientation and offers a dependable connection for compatible 5.5mm DC power connectors, making it ideal for compact electronic and power supply applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: DC Power Socket.
Connector Gender: Female.
Mounting Type: Surface Mount (SMT), PCB.
Orientation: Right Angle.
Compatible Plug Size: 5.5mm Outer Diameter × 2.5mm Inner Diameter.
Current Rating: 5A.
Voltage Rating: 24V DC.
Termination Type: Solder.
Contact Material: Copper Alloy.
Contact Plating: Gold and Tin.
Housing Material: PA9T.
Flammability Rating: UL94 V-0.
Operating Temperature: -40°C to +85°C.
Length: 9mm.
Width: 14.5mm.
Internal Switch: Normally Closed.
Colour: Black.
