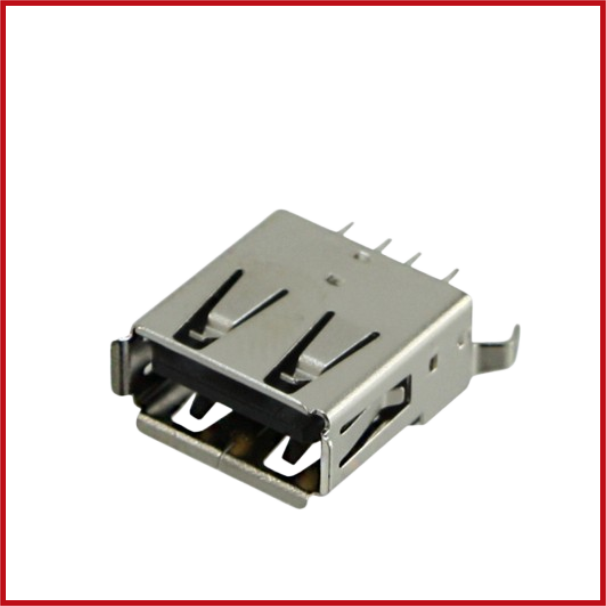

Conn USB PCM SS-52100-002 (ARENAL)
SKU: CON1-0049-000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Conn USB PCM SS-52100-002 (ARENAL) is a USB 2.0 Type-A female receptacle that provides dependable USB communication in embedded systems, industrial electronics, and consumer devices.
It has a vertical through-hole PCB mount with integrated board locks and a shielded metal shell, which provides superior mechanical stability, EMI protection, and reliable USB 2.0 data and power connections.
The connector provides conventional USB 2.0 connectivity at data transfer speeds of up to 480 Mbps and is ideal for applications that require a strong PCB-mounted USB interface.
Gold-plated contacts provide minimal contact resistance and a long service life.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: USB Type-A Receptacle.
Model: SS-52100-002.
Brand: ARENAL.
USB Standard: USB 2.0.
Connector Type: USB Type-A Female.
Number of Contacts: 4.
Number of Ports: 1.
Mounting Type: Through-Hole PCB.
Orientation: Vertical.
Termination: Solder.
Shielding: Yes (Metal Shield).
Board Lock: Yes.
Rated Current: 1.5 A.
Contact Material: Copper Alloy.
Contact Plating: Gold.
Shell Material: Copper Alloy.
Shell Finish: Nickel Plated.
Housing Material: High-Temperature Thermoplastic (UL94 V-0).
Operating Temperature: -55°C to +85°C.
RoHS Compliant: Yes.
