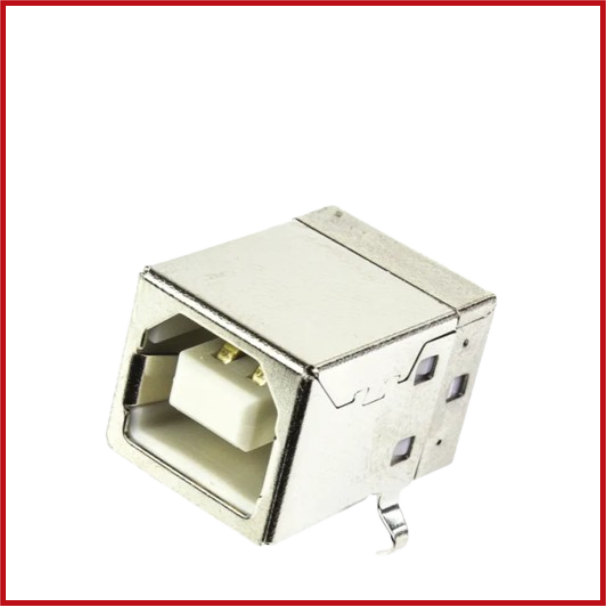

Right Angle PCB Mount Female Type B USB Connector, 30 Vac, 1.5A
SKU: CON1-0051-000
Sold by Select Automation
Final price R 27.29
R 23.73 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Right Angle PCB Mount Female USB Type-B Connector is a strong through-hole USB receptacle designed to provide dependable USB data and power connections in electronic equipment.
With a 90° right-angle orientation, this connector allows for horizontal cable insertion, making it excellent for space-constrained PCB layouts and enclosure-mounted applications.
The connector's sturdy metal shield and high-quality copper alloy contacts provide good electrical performance, mechanical strength, and EMI protection.
The through-hole mounting design offers a secure PCB attachment, making it ideal for industrial equipment, embedded systems, printers, development boards, and instruments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: USB Type-B Receptacle.
Connector Type: Female.
USB Standard: USB Type-B.
Orientation: Right Angle (90°).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Rated Voltage: 30 V AC.
Rated Current: 1.5 A.
Contact Material: Copper Alloy.
Shielding: Metal Shield.
Housing Material: High-Temperature Thermoplastic.
Operating Temperature: -40°C to +85°C.
RoHS Compliant: Yes.
